7.3L 2024 SUPER DUTY CRATE ENGINE
M-6007-73B
Retail
$8,900.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

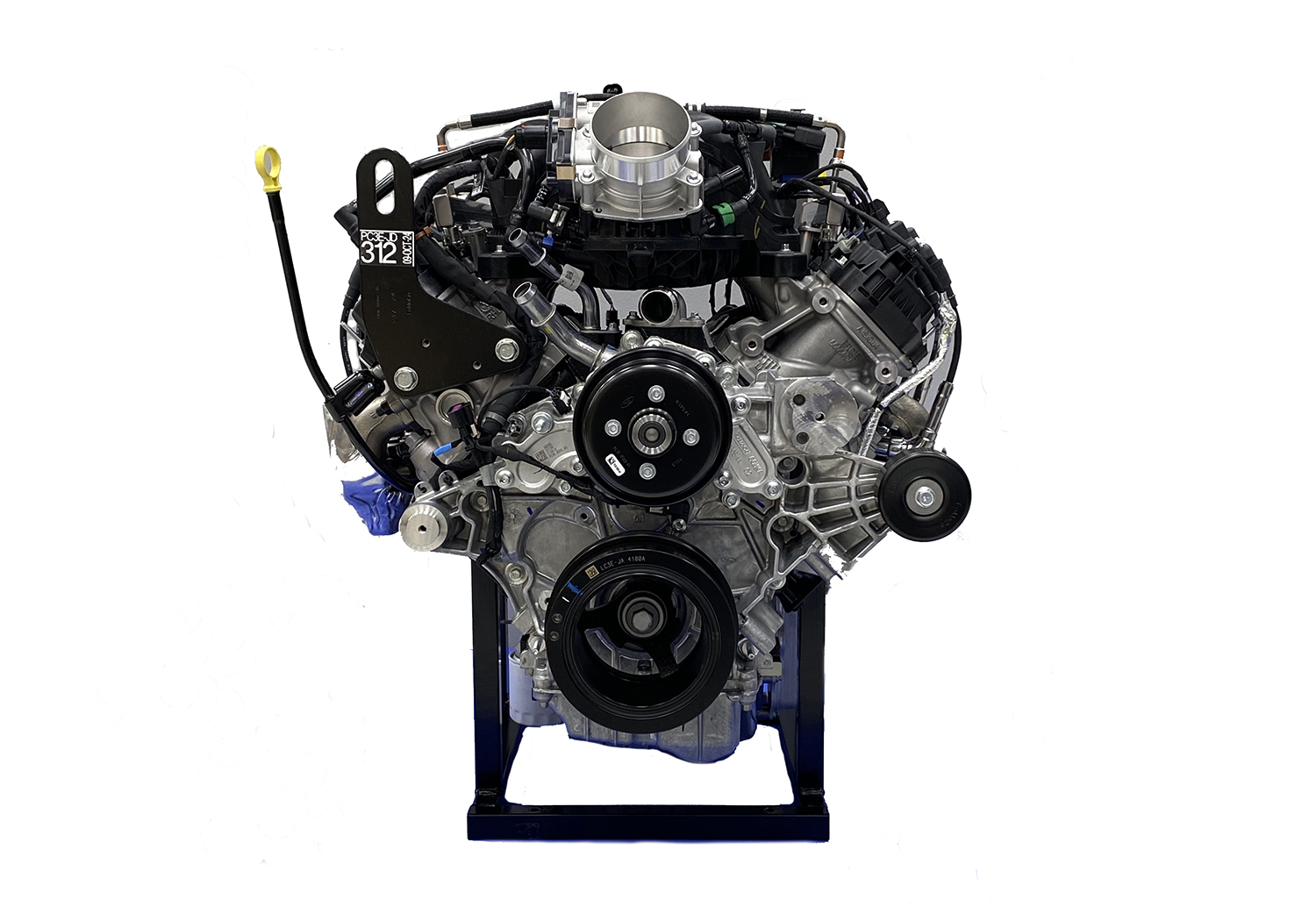

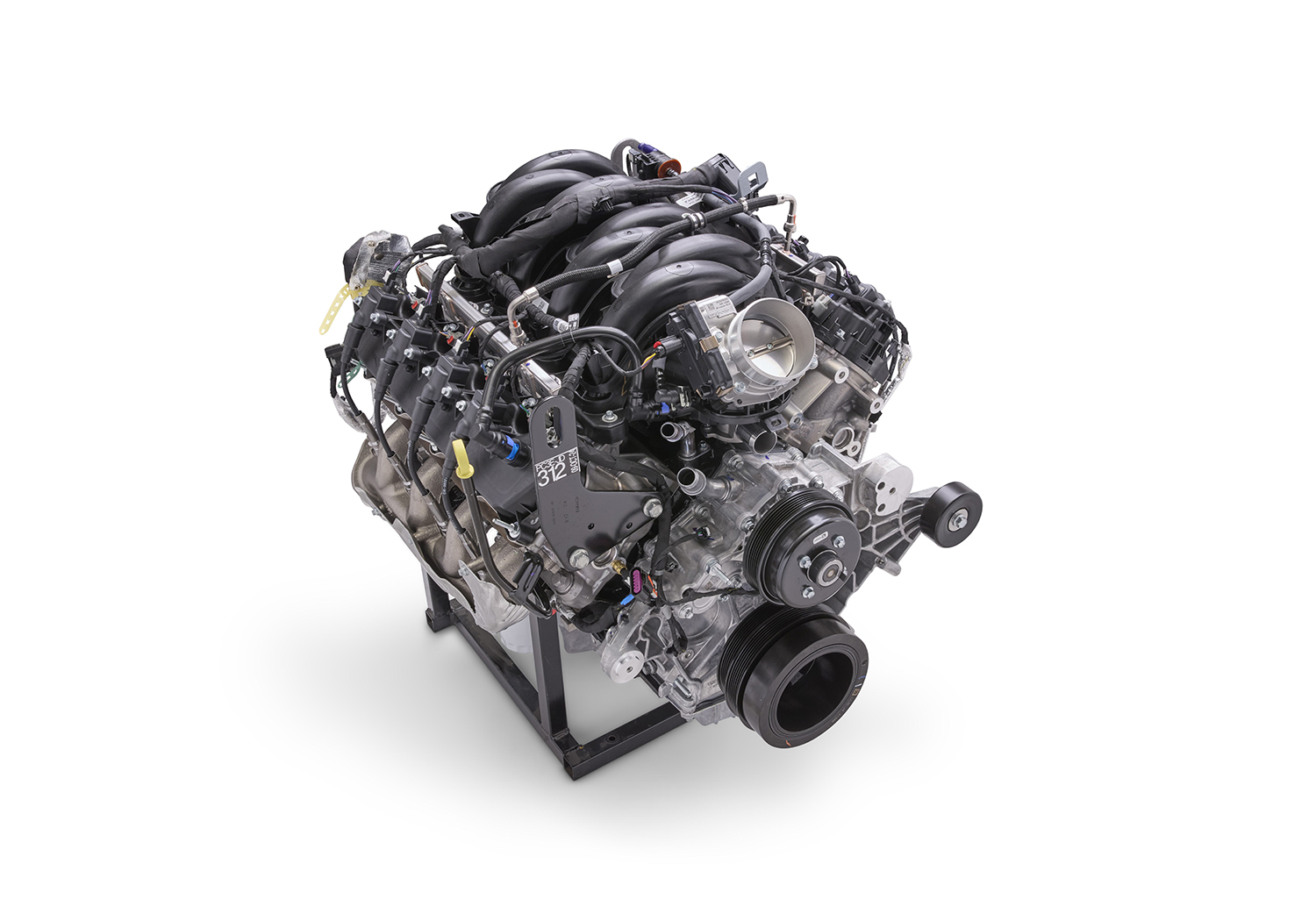

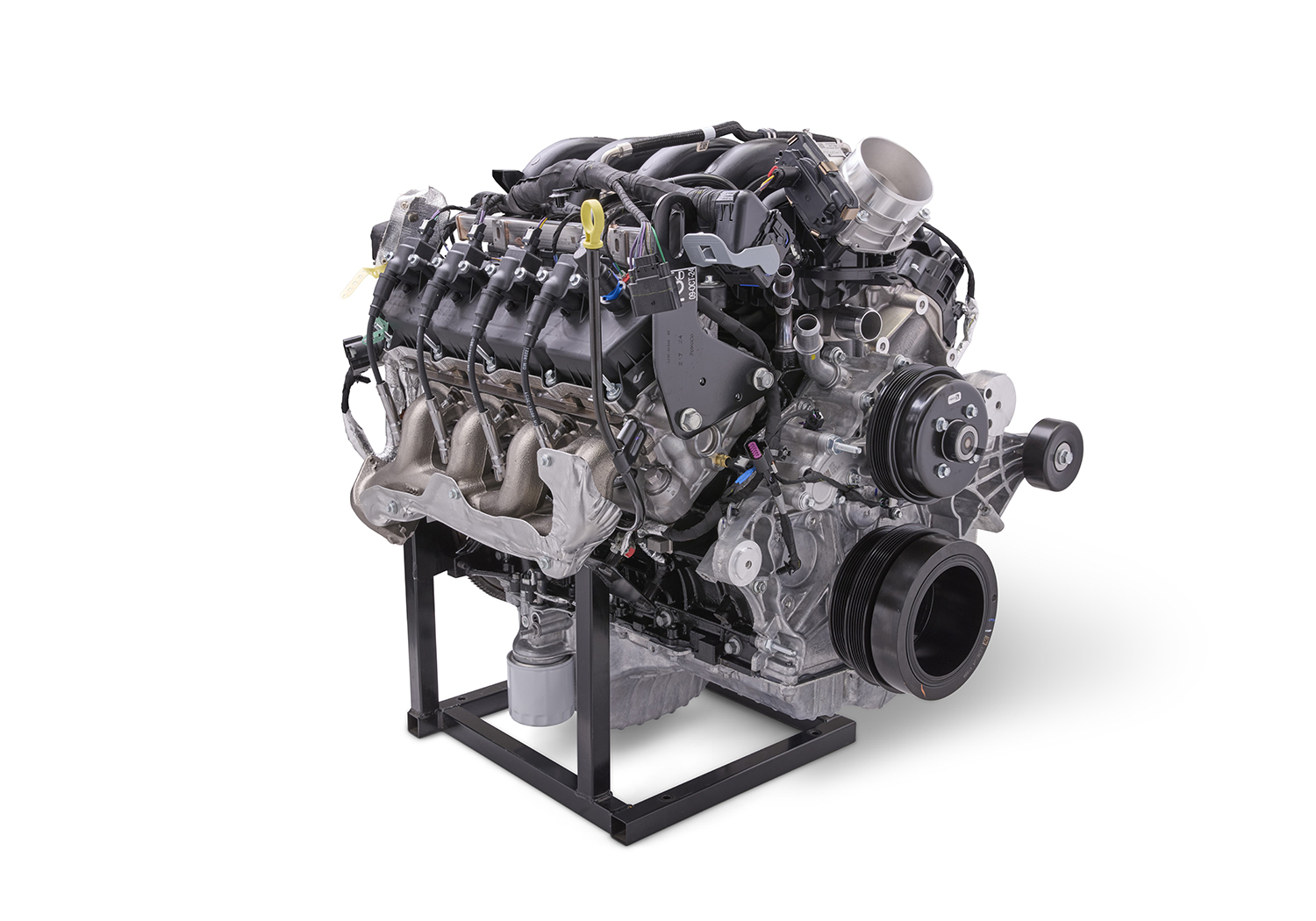

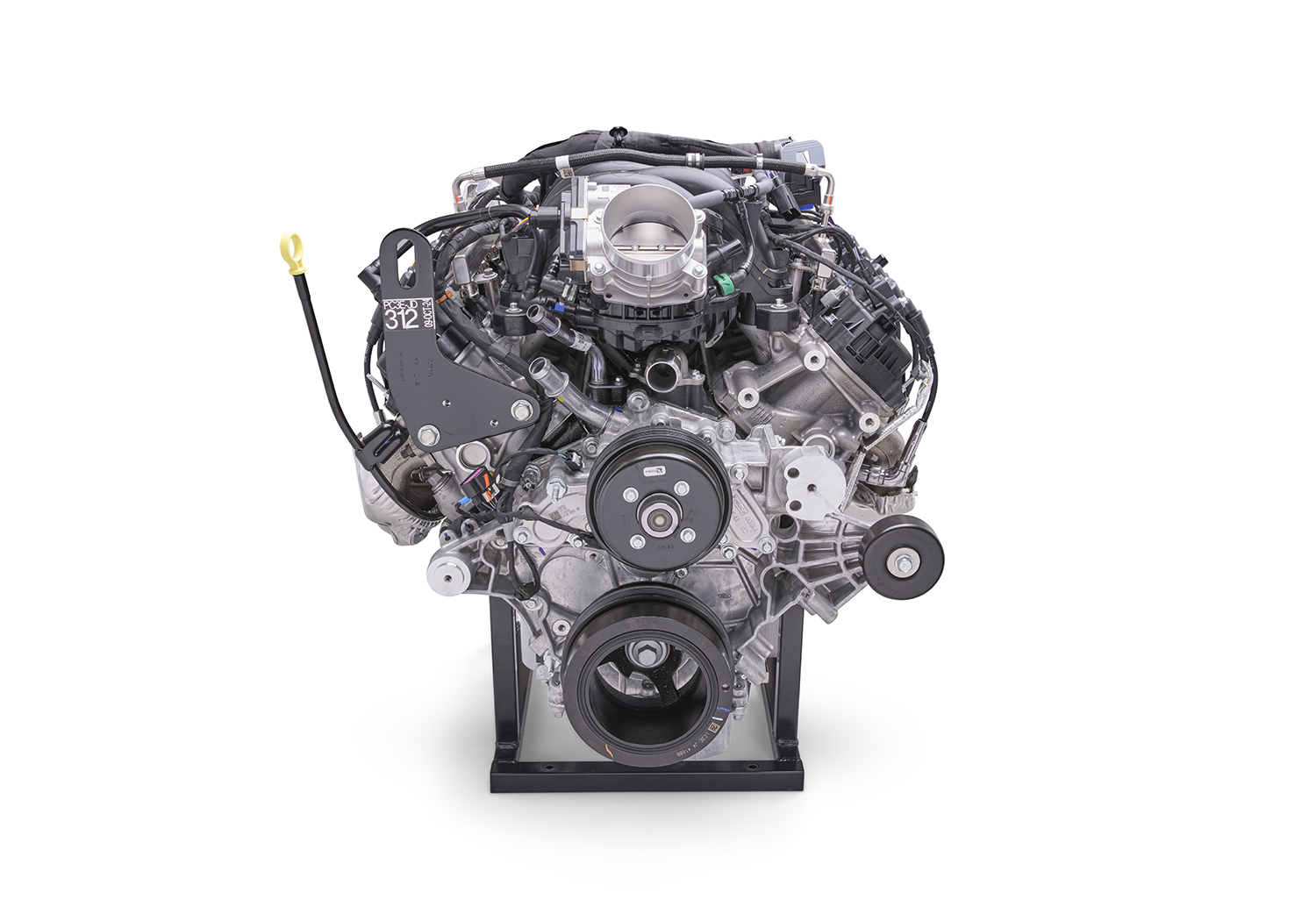

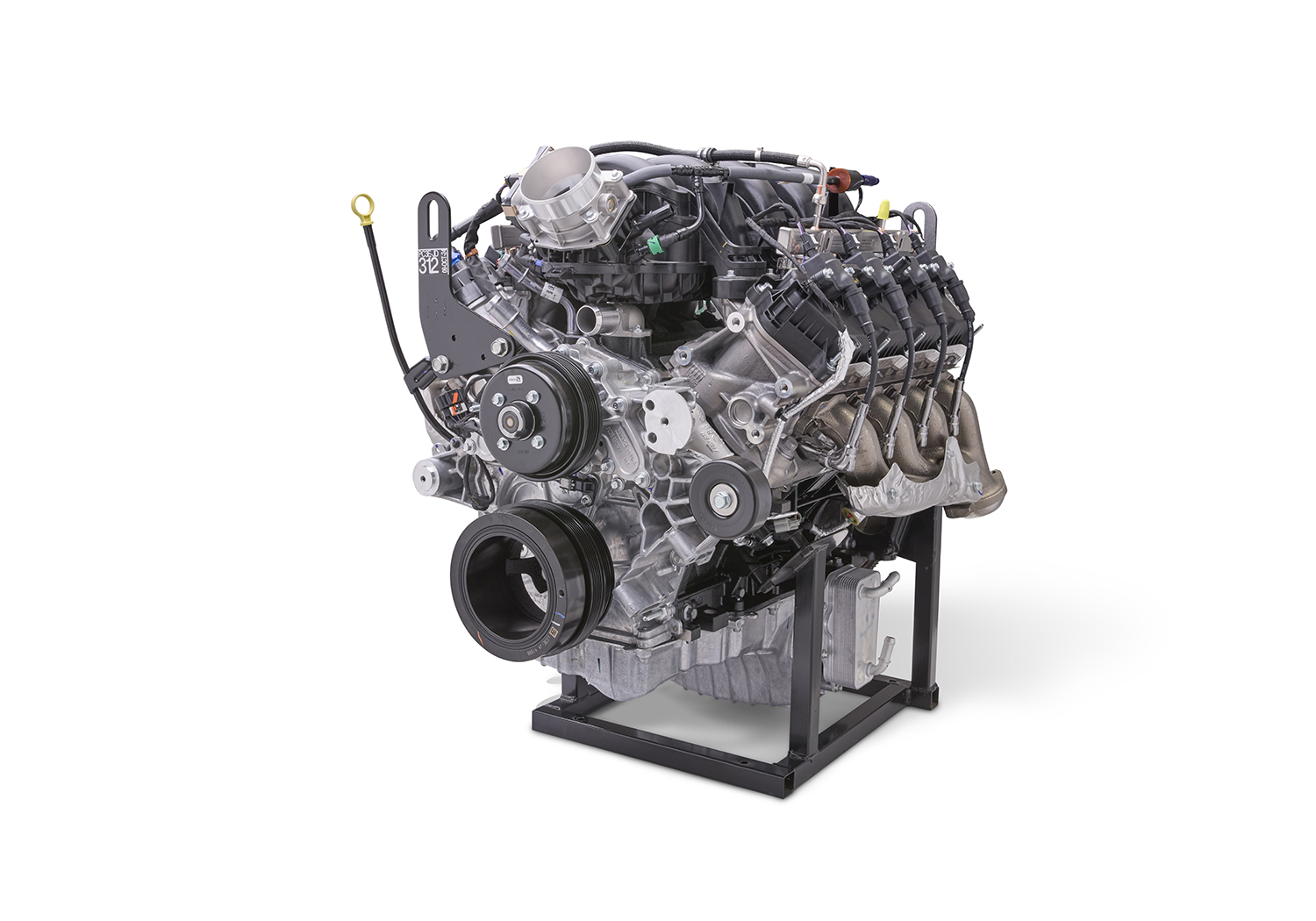

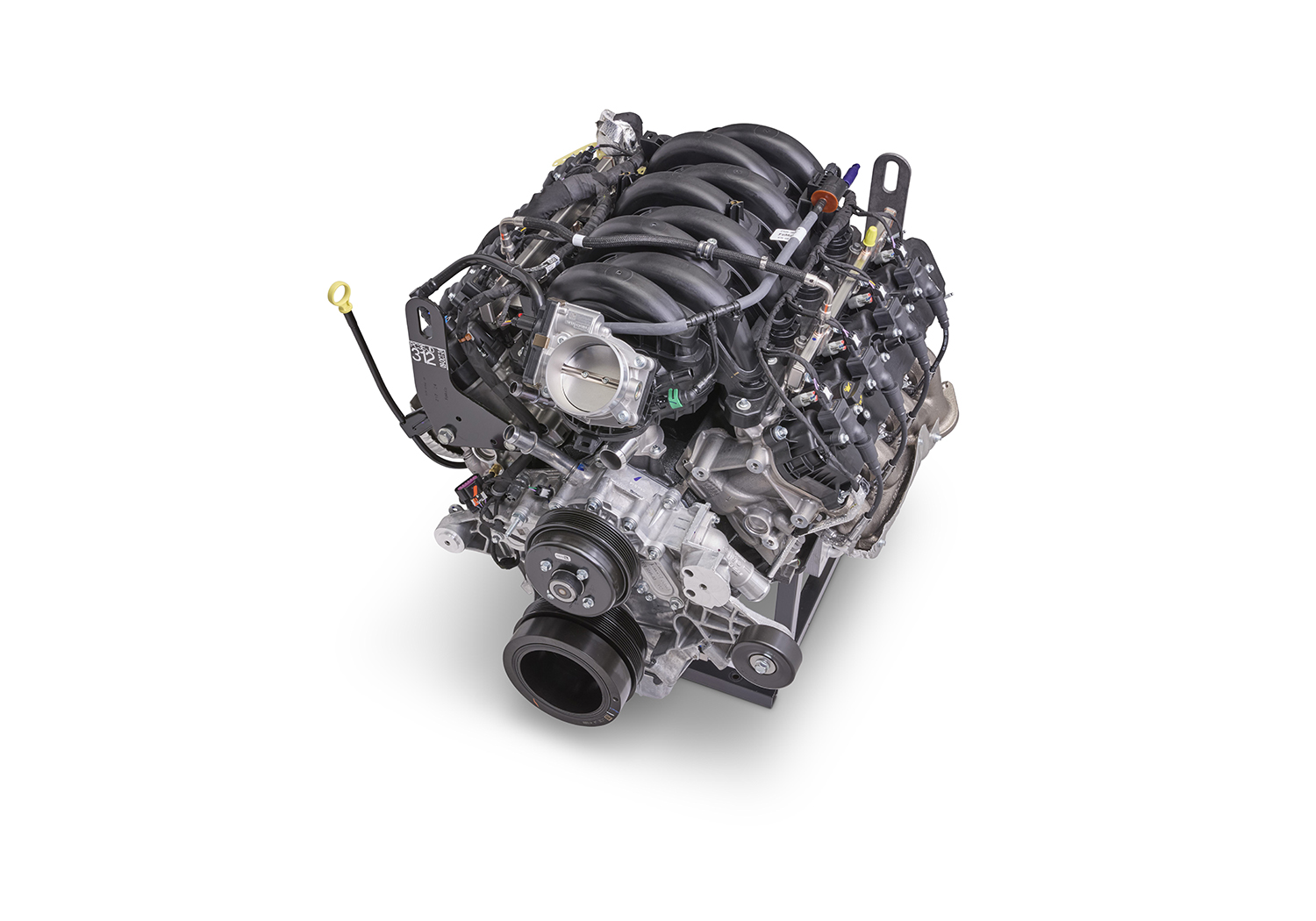

The 7.3L V8 Ford gasoline crate engine from the 2024 F250 Super Duty features:
The engine assembly includes:
- 7.3L displacement
- Bore 107.2 mm x stroke 101.0 mm
- Cast iron block
- Aluminum cylinder heads
- Intake valve diameter 55.13 mm
- Exhaust valve diameter 42.53 mm
- Lift (intake/exhaust) 13.67 mm / 15.26 mm
- Cam-in-block OHV design w/ variable cam timing
- Forged steel crankshaft
- Cast Aluminum pistons
- 430 HP at 5,500 rpm
- 485 lb.-ft. of torque at 4,000 rpm
- 10.5:1 compression
- Port fuel injection
- Firing order: 1-5-4-8-6-3-7-2
- Composite Intake manifold and 87 mm throttle body
- Left and Right exhaust manifolds
- 8 quart aluminum oil pan/cooler
- Ignition coils and wires

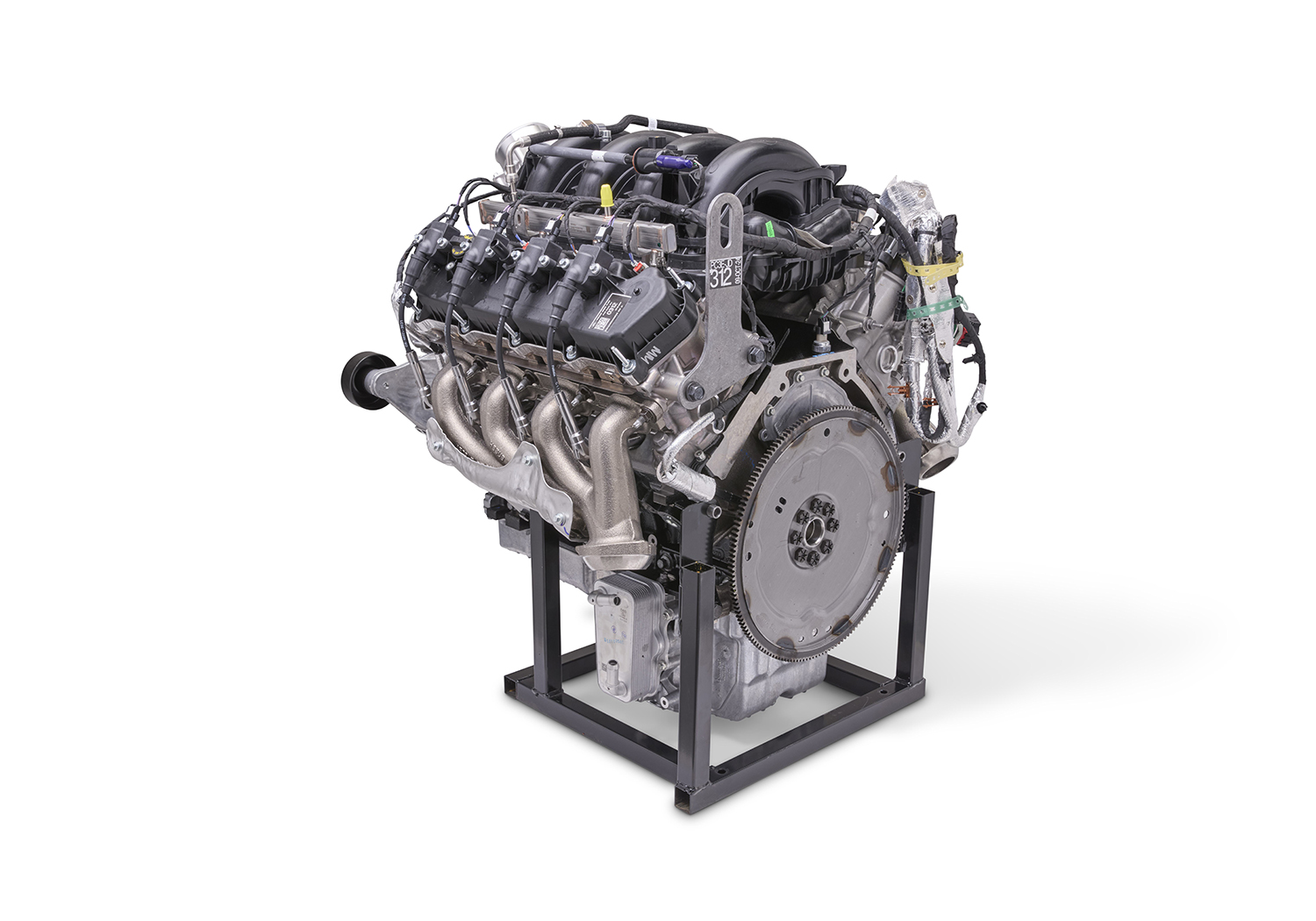

- Production flex plate
- M-6038-73 shipping and storage cradle
- Factory lift brackets
- Bellhousing bolt pattern same as 4.6/5.4 and 5.0 Coyote
- Engine weight: 580 lbs.
For a 7.3L starter see M-11000-SD73 For FEAD kit see M-8600-SD73 For A/C add-on kit see M-8600-SD73AC
For control pack information, please contact the Ford Performance Parts Techline.
Part Type
Engine: Complete Engines
Warranty Availability
Not Available
Package Dimensions
42" x 42" x 45"
Package Weight
737 lb(s)
UPC Code
756122023310
Country of Origin
Canada
