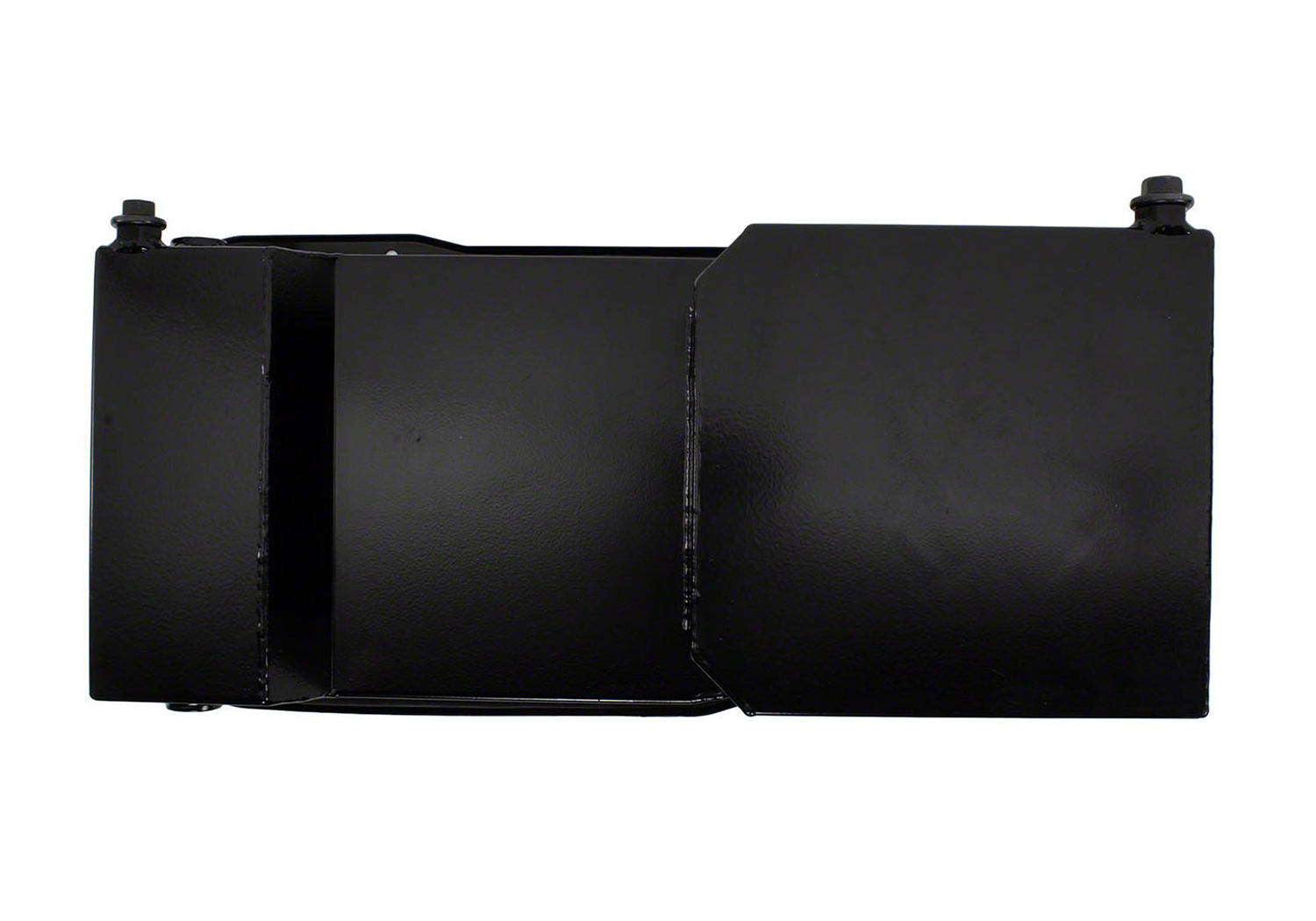

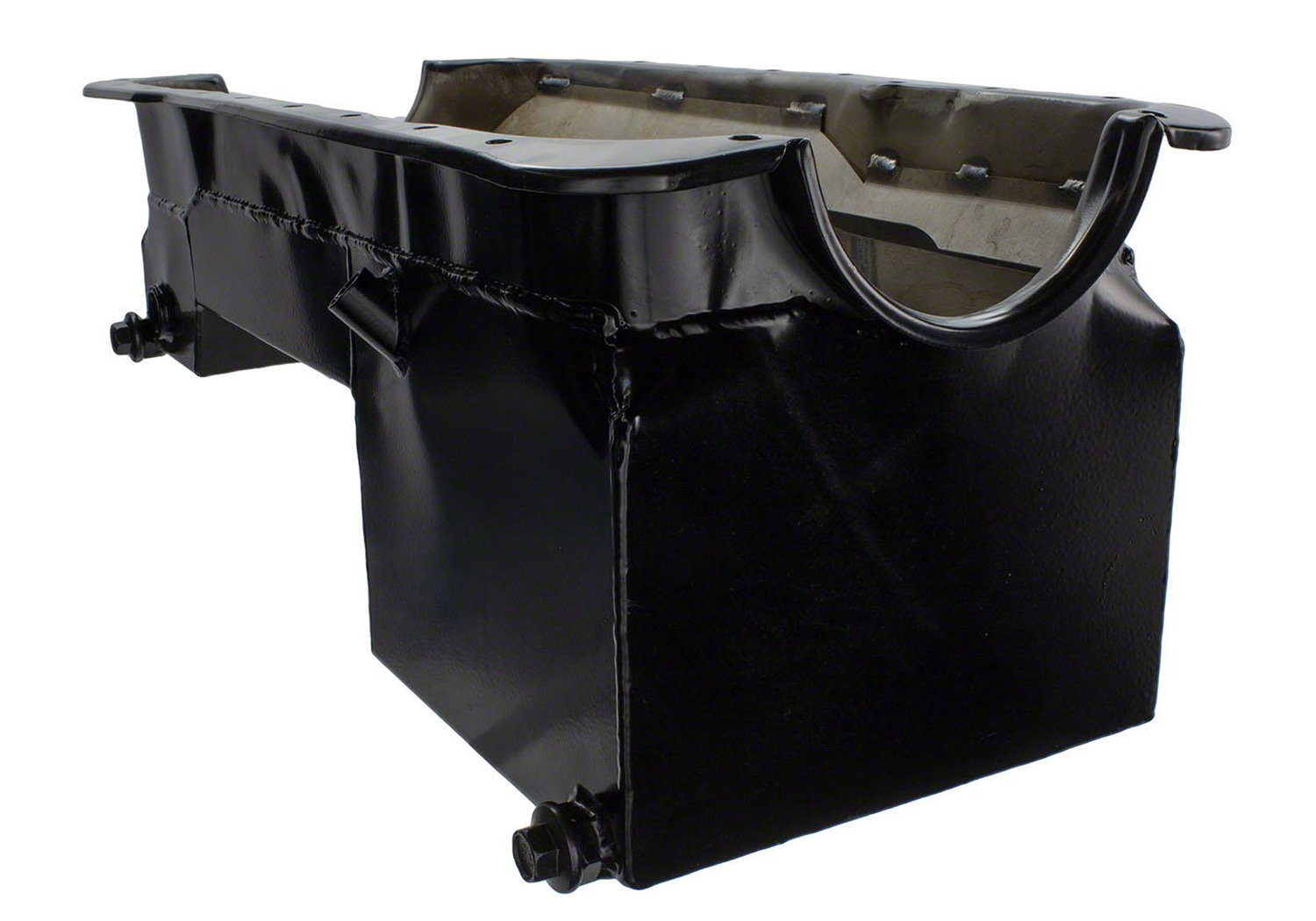

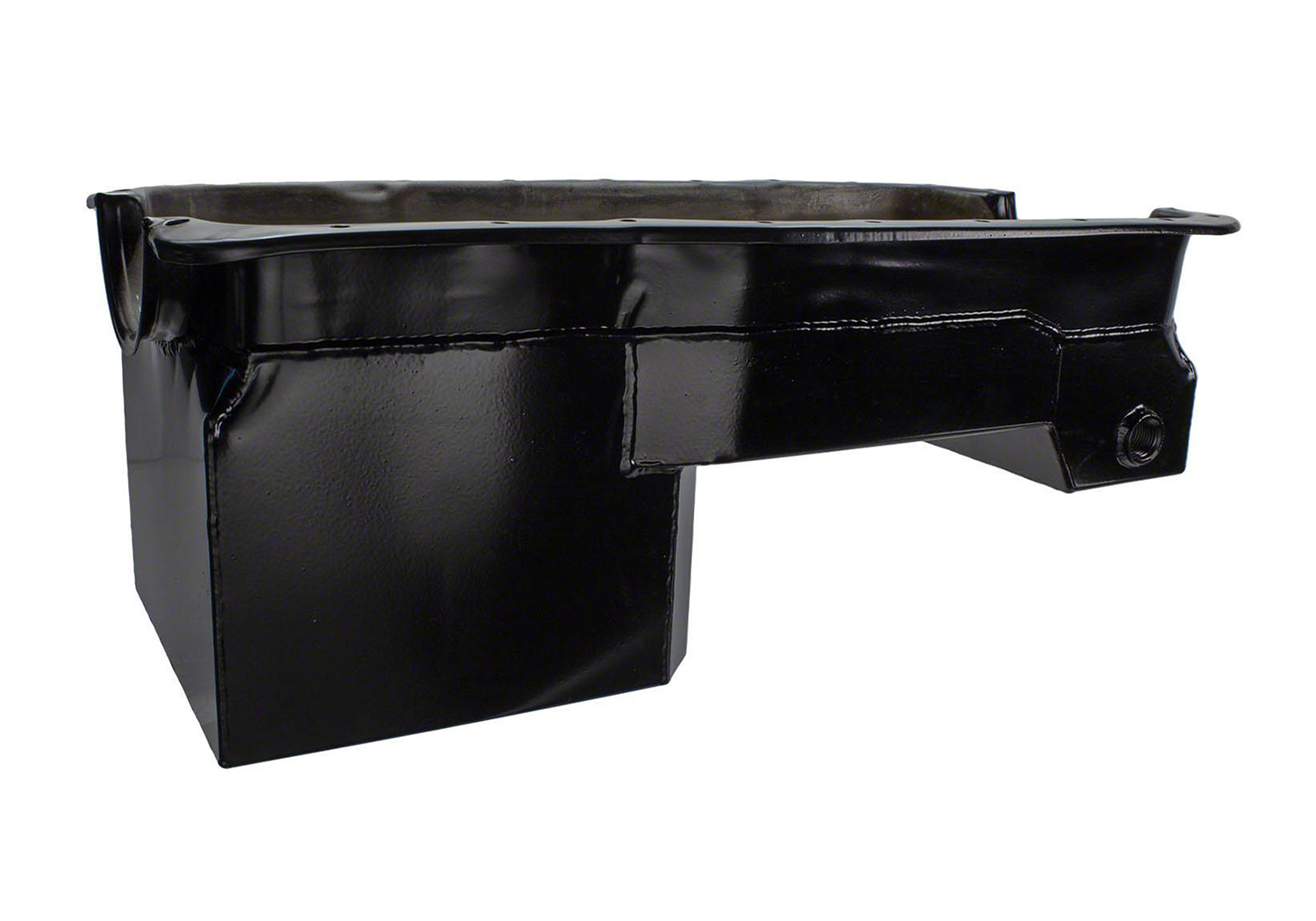

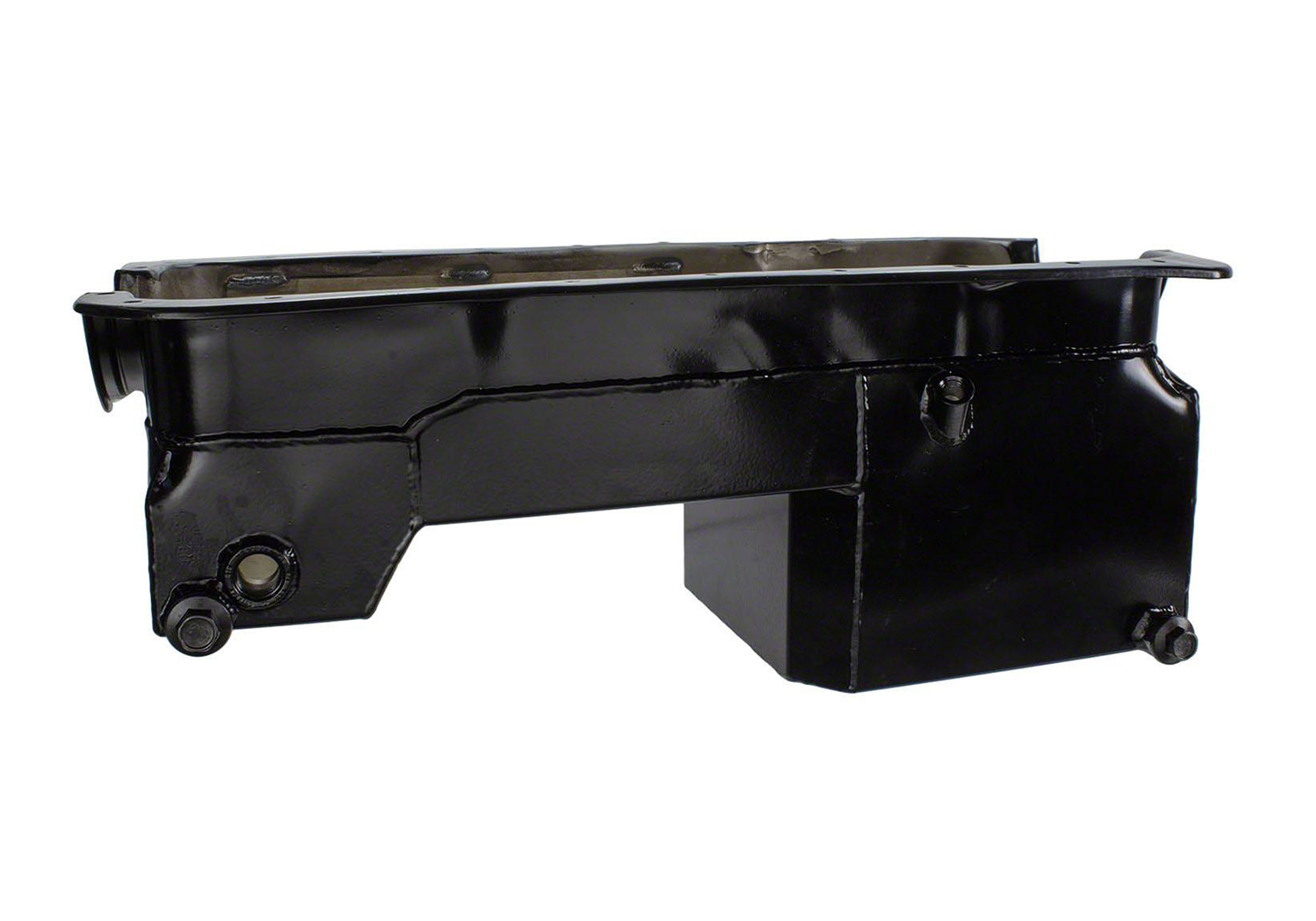

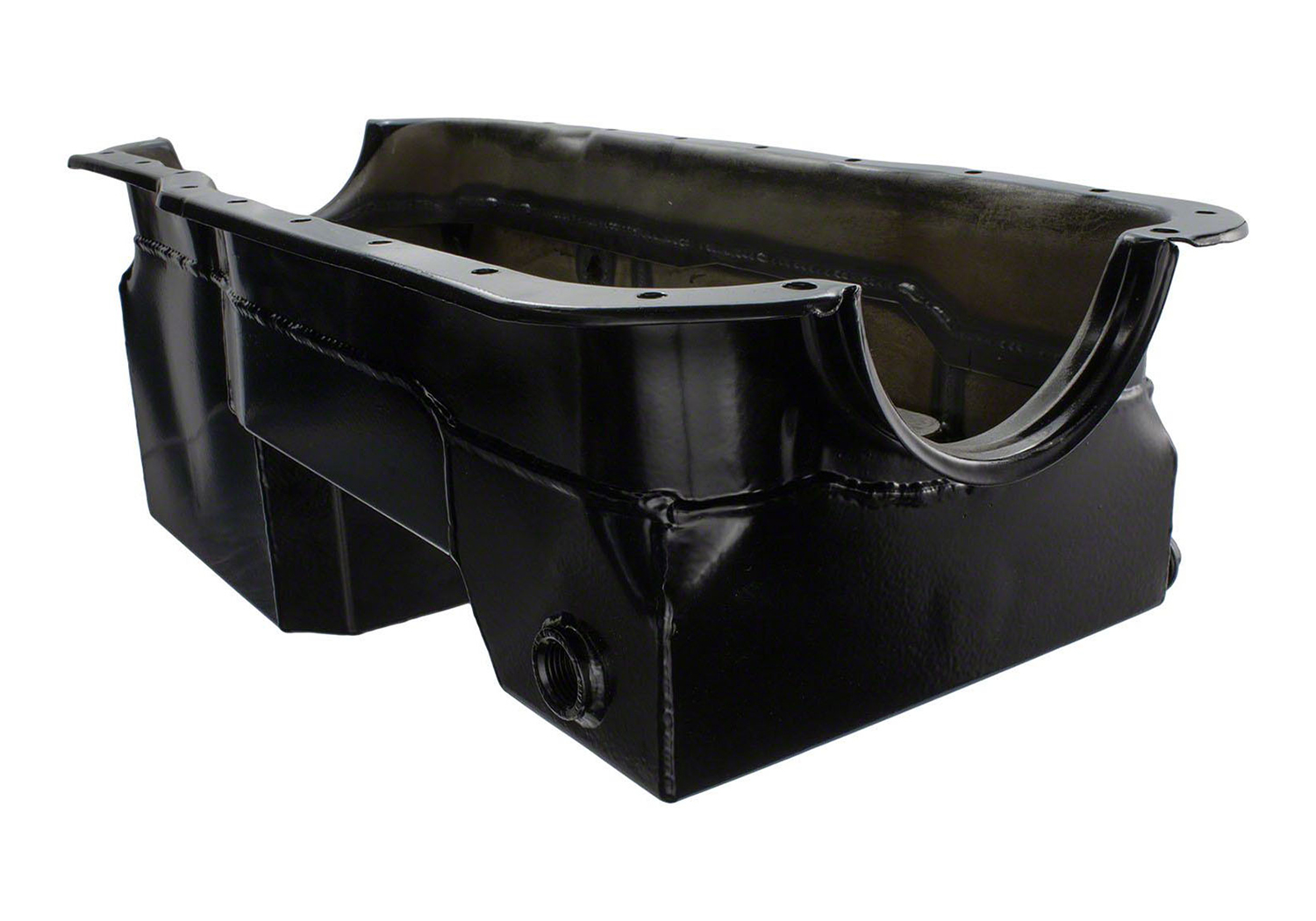

302 DEEP REAR SUMP OIL PAN
Designed by Ford Performance for use on its crate engines, the M-6675-DRS302 oil pan is constructed to deliver power and durability.
- Full length scraper to direct oil away from the crankshaft

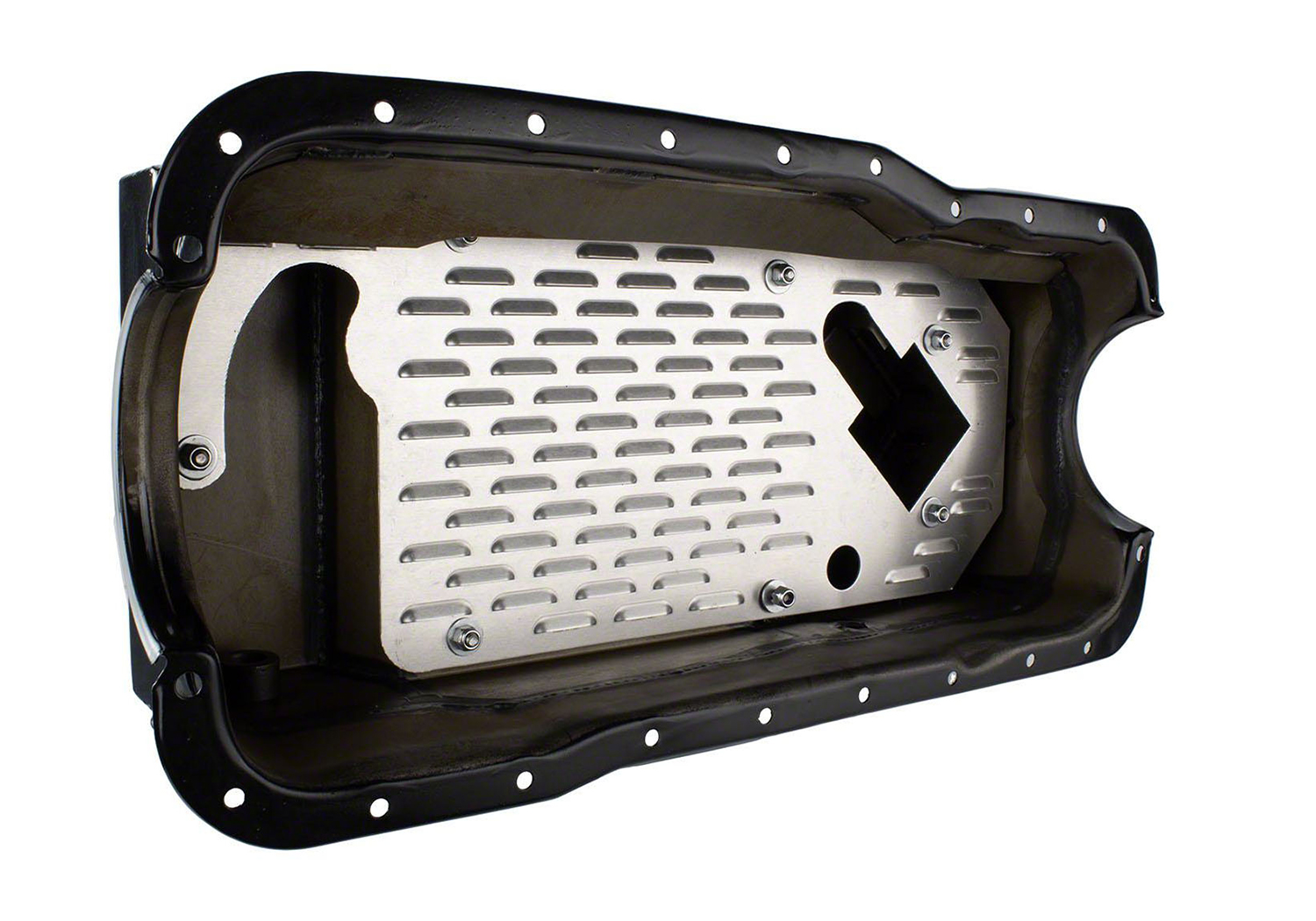

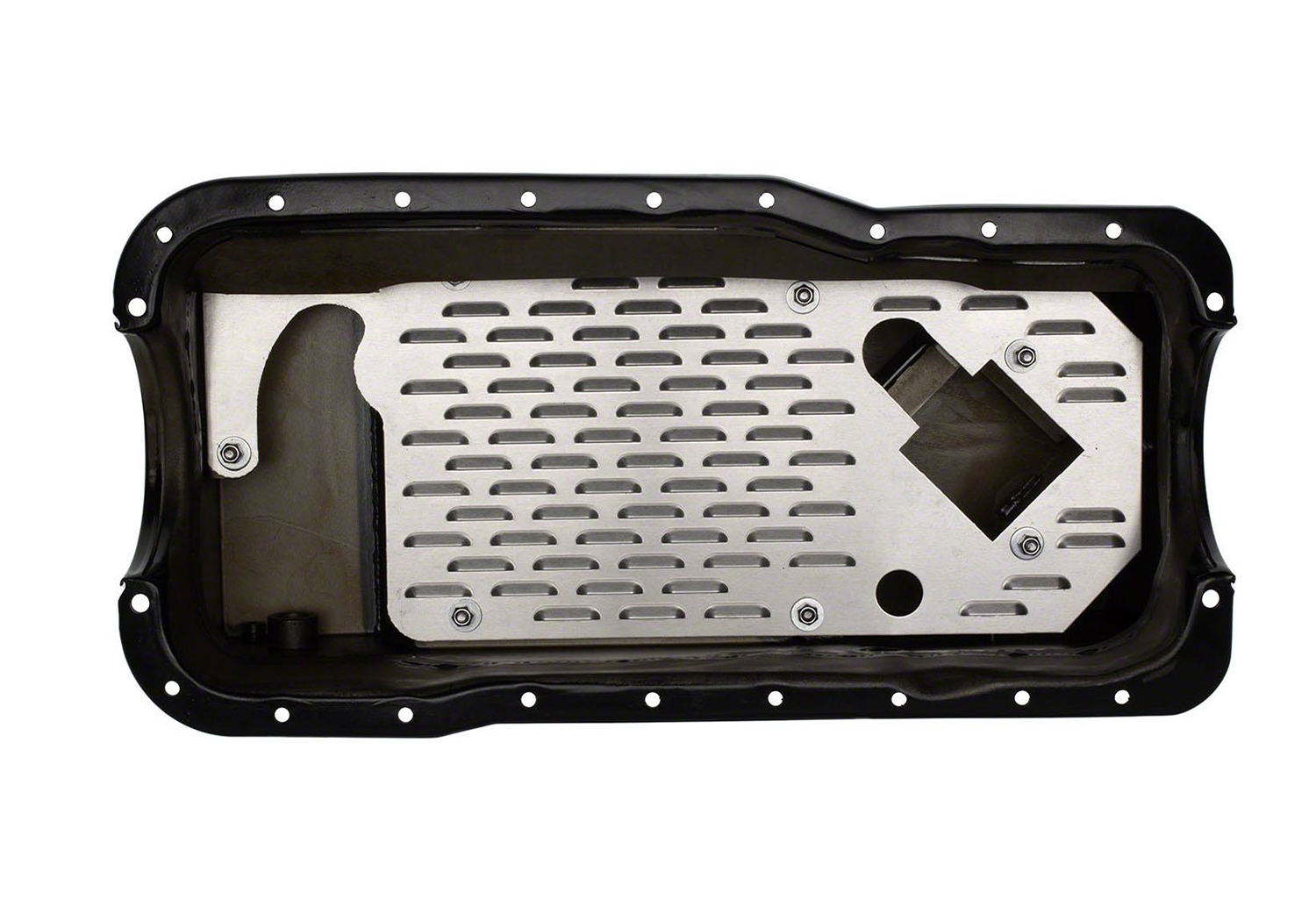

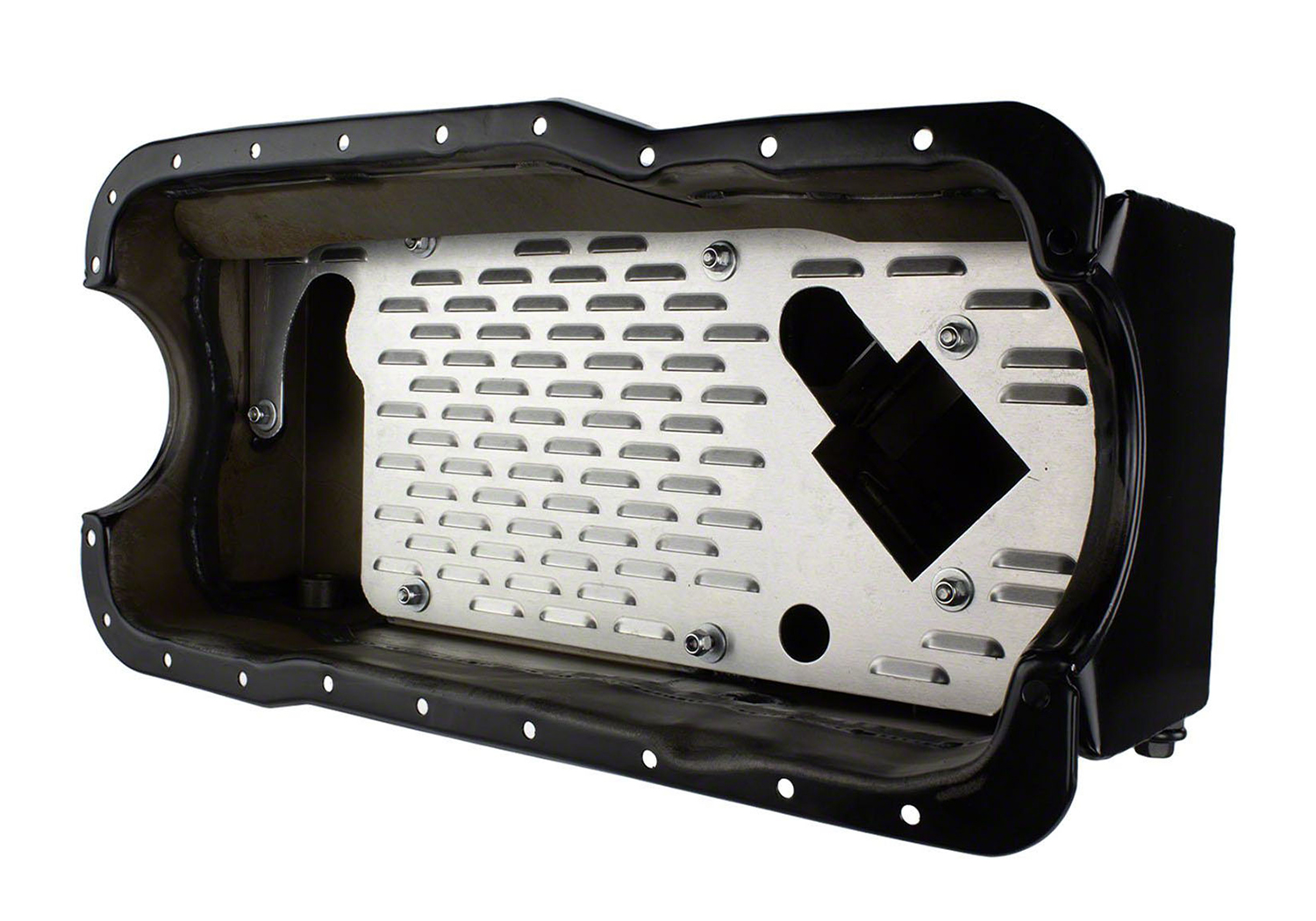

- Full length bolt in louvered windage tray to control oil
- Baffling and trap doors in the sump to keep the pickup submerged during performance driving
- 7 quart capacity
- Rear sump depth is 9.1". Rear sump width is 8.7". Front sump depth is 6.7"
- Includes 3/8" NPT bung to mount an oil temperature sending unit
- Includes 3/8" NPT access hole to adjust oil pump spring pressure
- Fits standard 302 Windsor block oil pan bolt pattern
- Designed to clear 4-bolt main cap Ford Performance BOSS 302 blocks
- Semi-gloss black powder coat finish
- Laser cut and TIG welded in precision fixtures for consistent OEM level fit
- Used on FRPP M-6007-Z363RT Crate Engine
- Use pickup M-6622-DRS302
Engine: Oil Pumps/Pans
17" x 9.75" x 24"
