1.6 LITER 4-CYLINDER LOTUS ENGINE BLOCK
M-6010-16L
Retail
$2,250.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

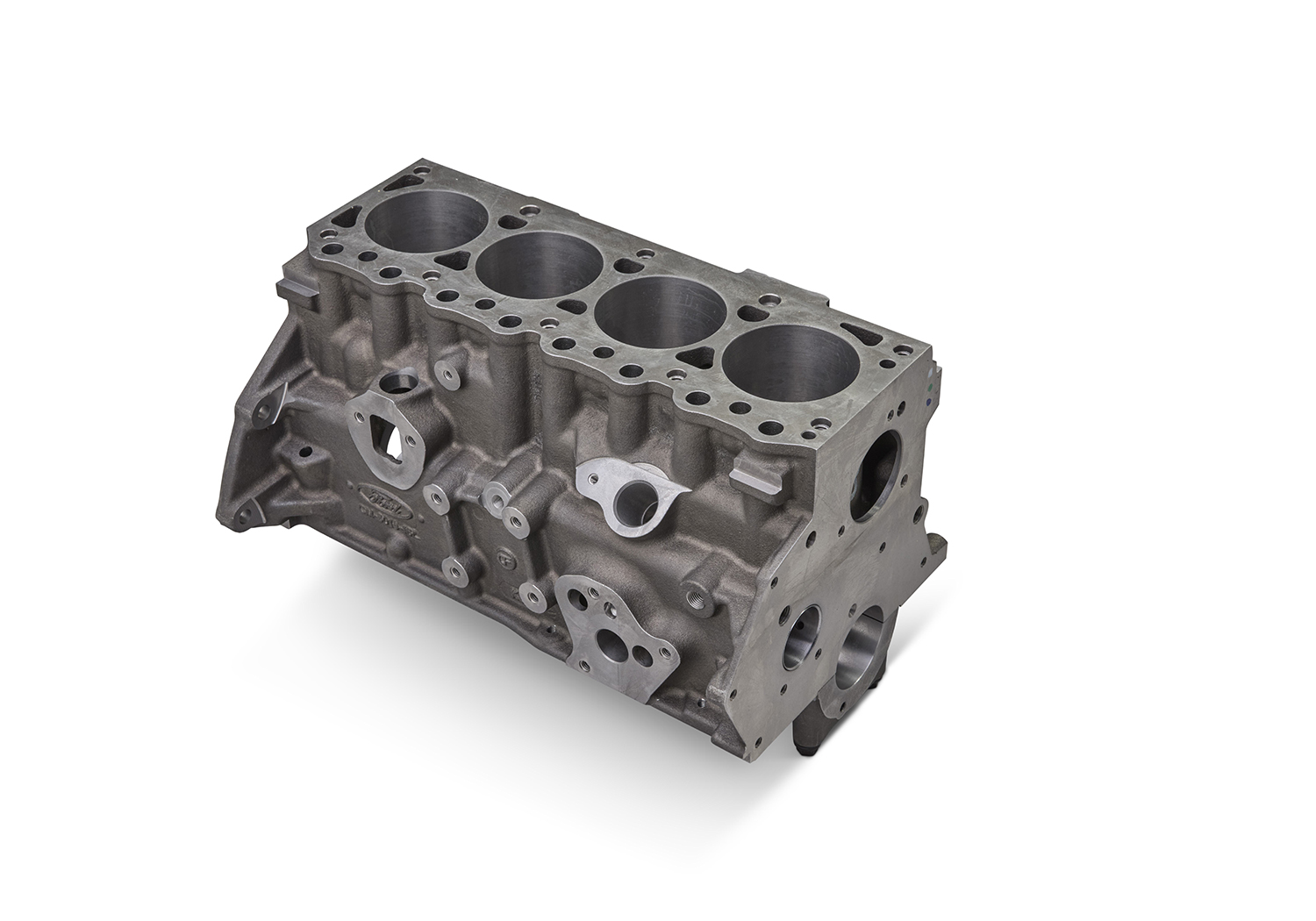

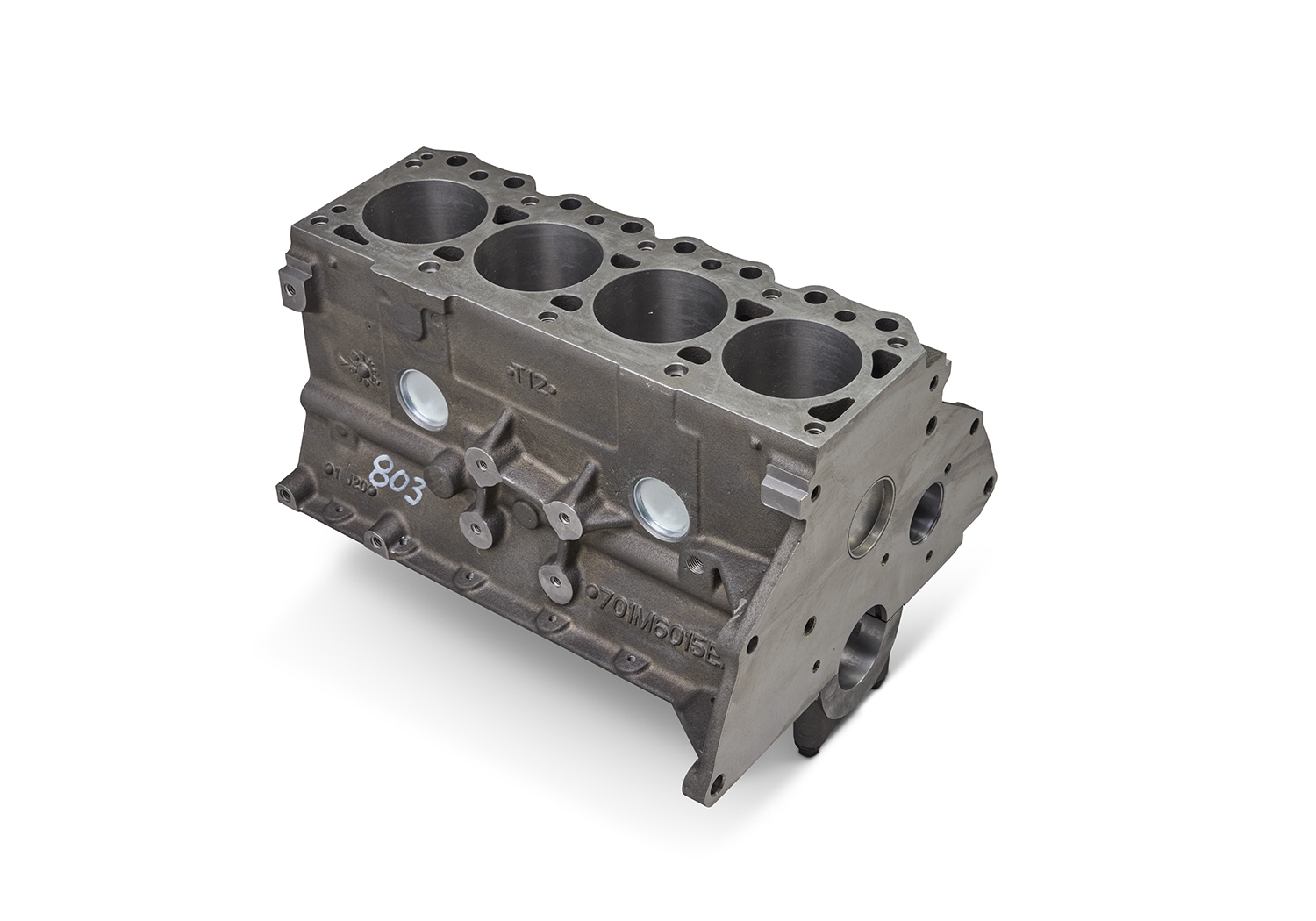

Elevate your engine's performance with the Lotus 1.6L Cylinder Block, crafted from ultra-strong grey iron. Precision-engineered for durability, it’s the foundation for a powerful and dependable engine build.

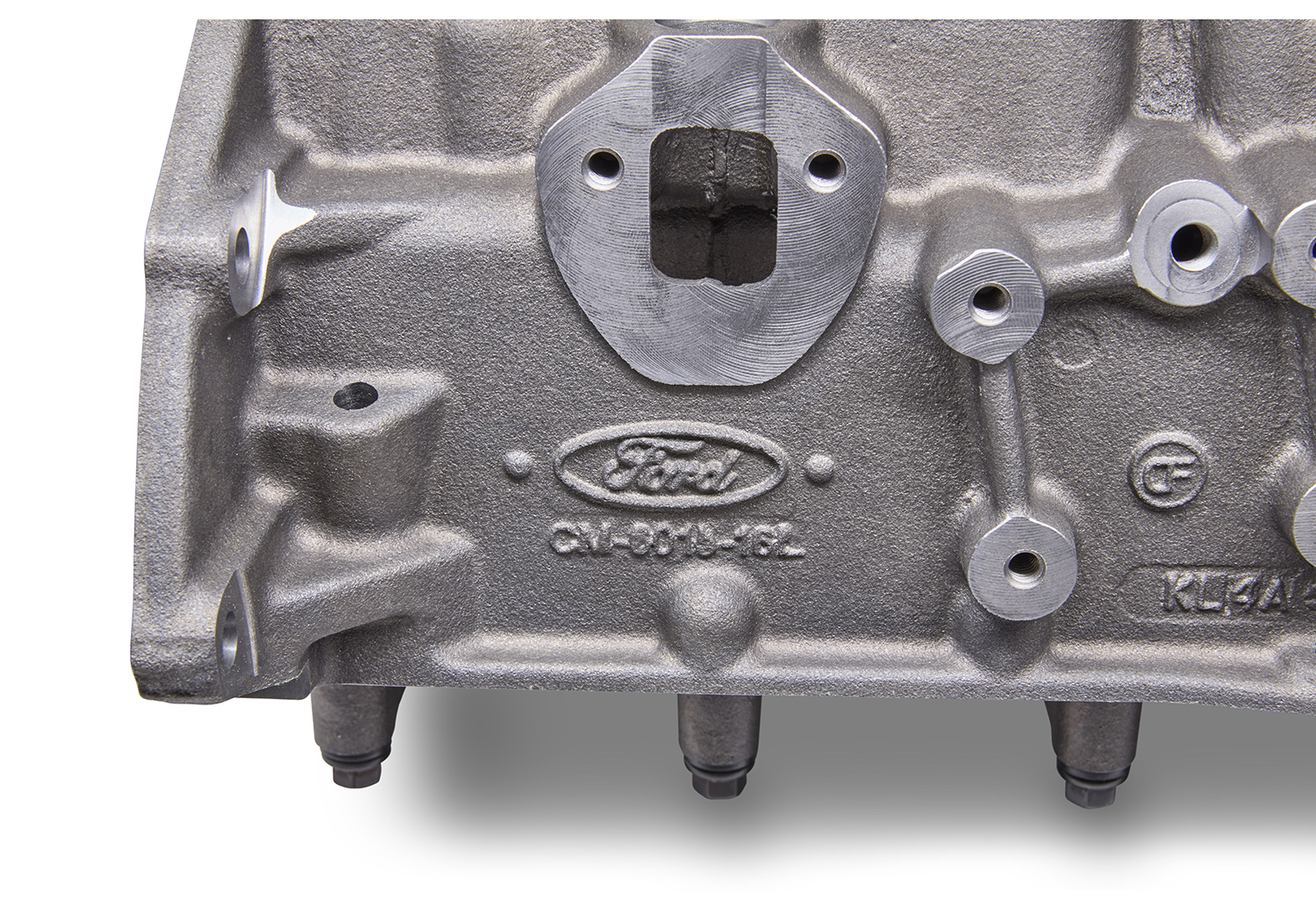

The Lotus block features an all new grey iron casting that is stronger than the original and accepts the Lotus cylinder head.
- Standard 7.800" deck height with extra material for decking
- Machined and delivered with cylinder bores semi-finished at 3.228 - 3.226" (81.99 - 81.94mm) diameters
- Block is designed for standard bore engine builds
- Lifter bore diameter: .5155" - .5145"
- Block cast from 40,000 PSI grey iron
- Lower clutch housing bolt bosses reinforced

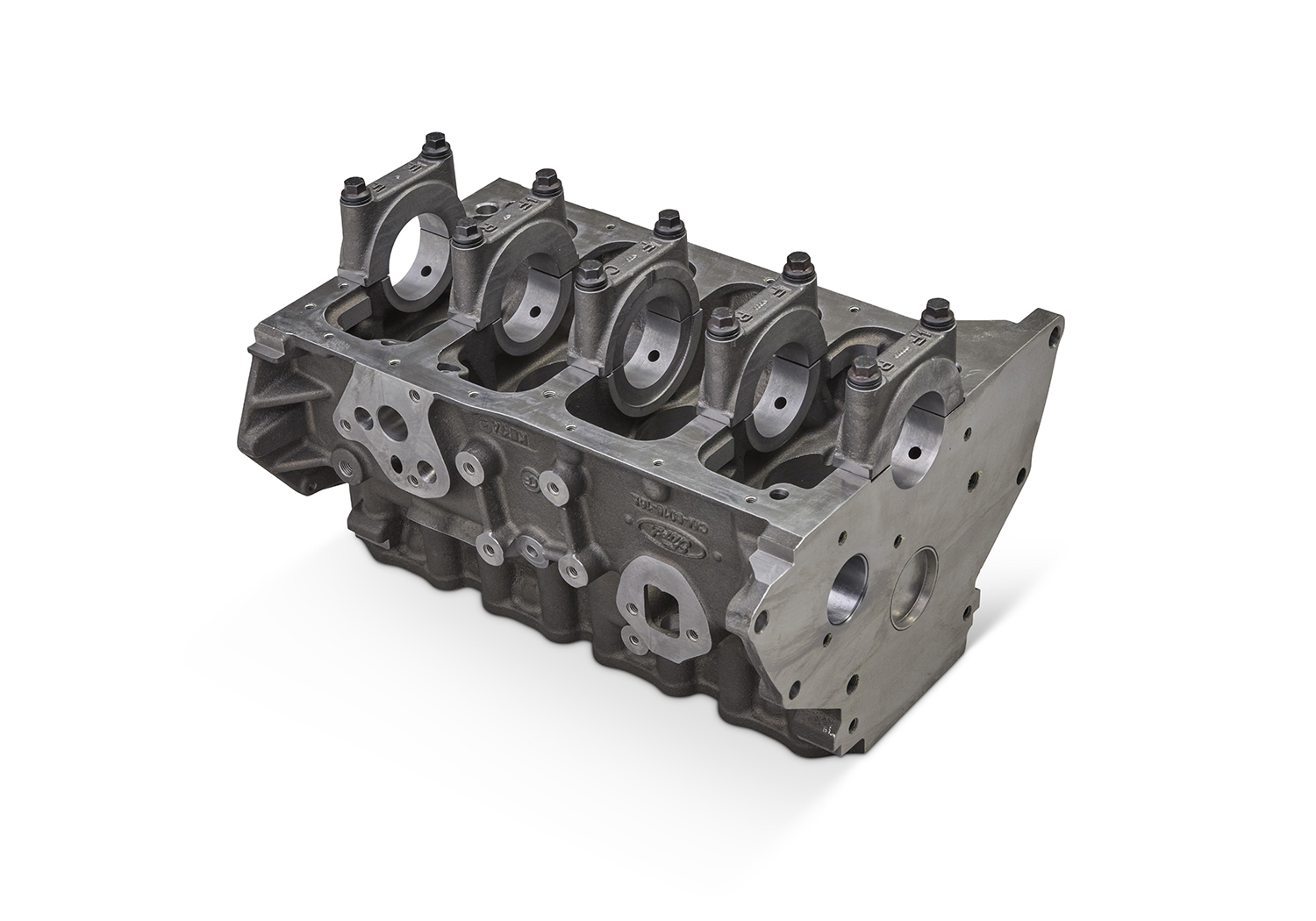

- Select areas around main bearing webs strengthened
- Center main will accept upper and lower crankshaft thrust bearing inserts
- Includes cam bearings (Installed)
Part Type
Engine: Engine Blocks
Instruction Sheet
Warranty Availability
Package Dimensions
20" x 15" x 14"
Package Weight
97 lb(s)
UPC Code
756122121818
Country of Origin
United States
