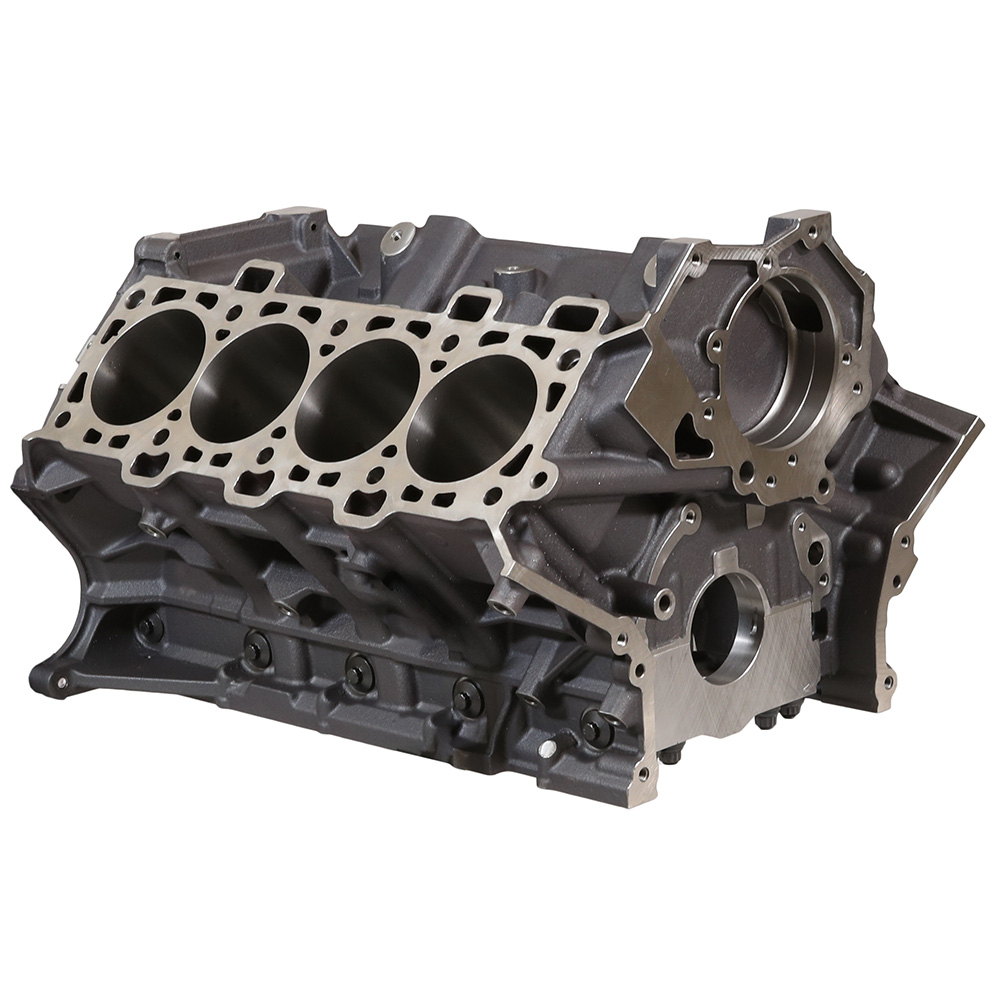

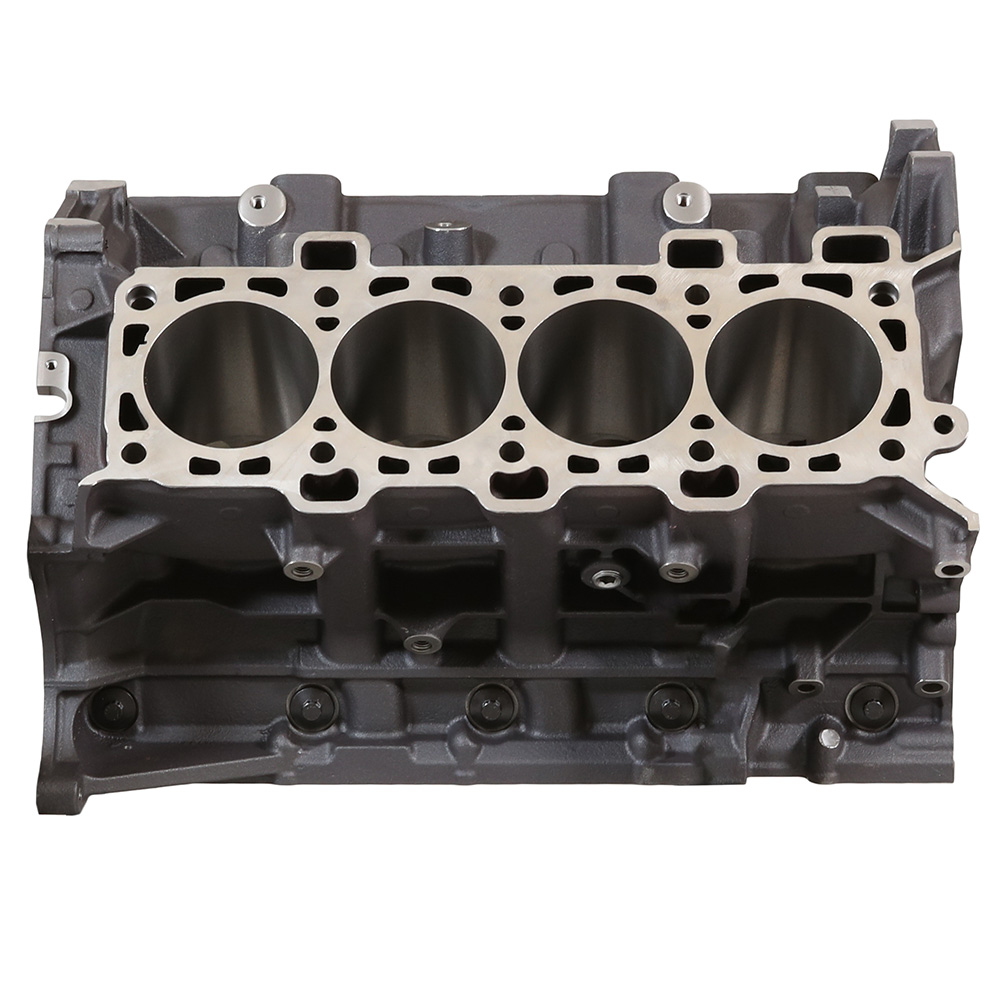

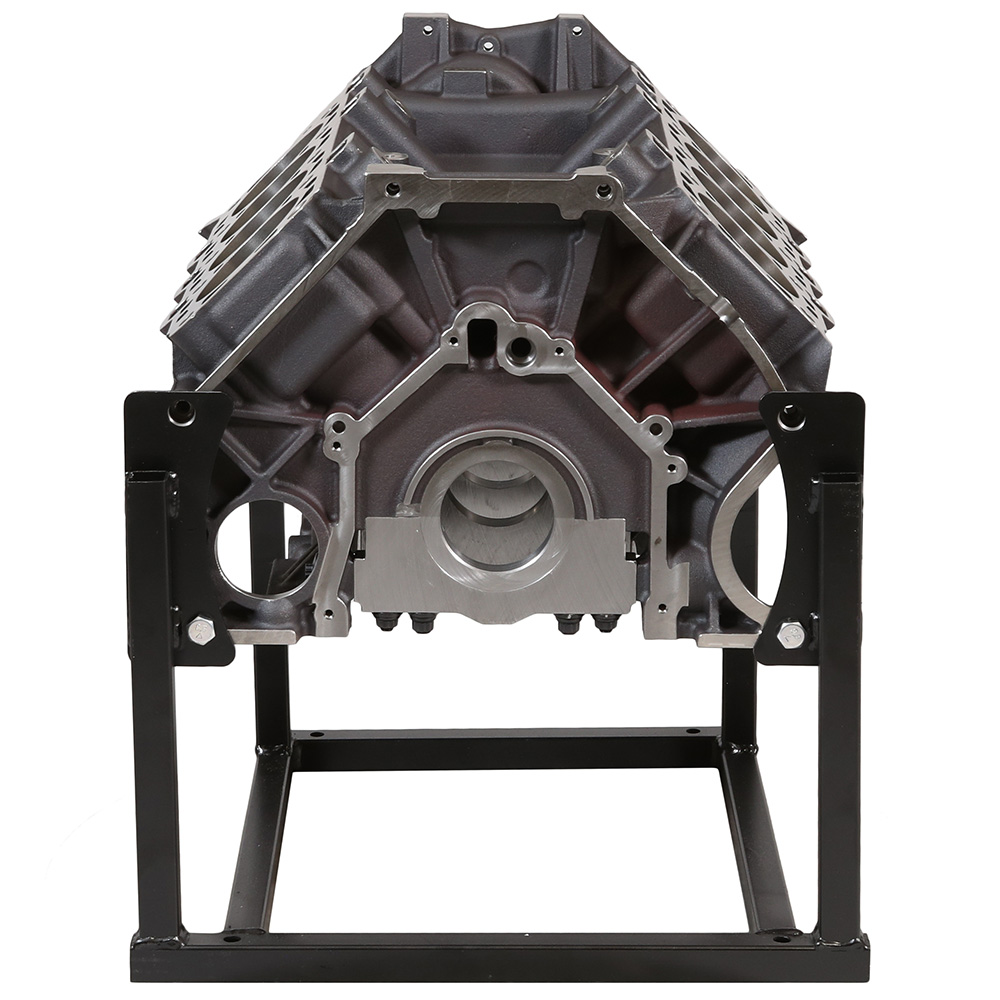

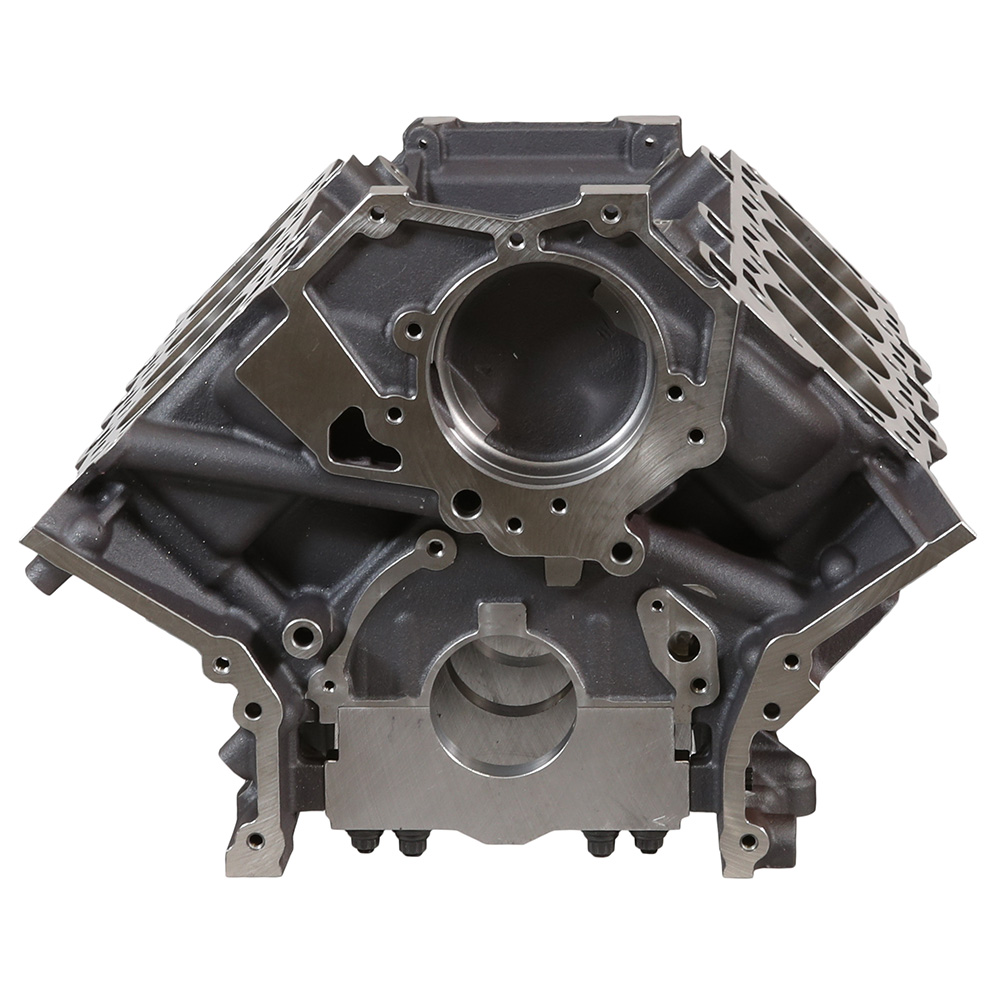

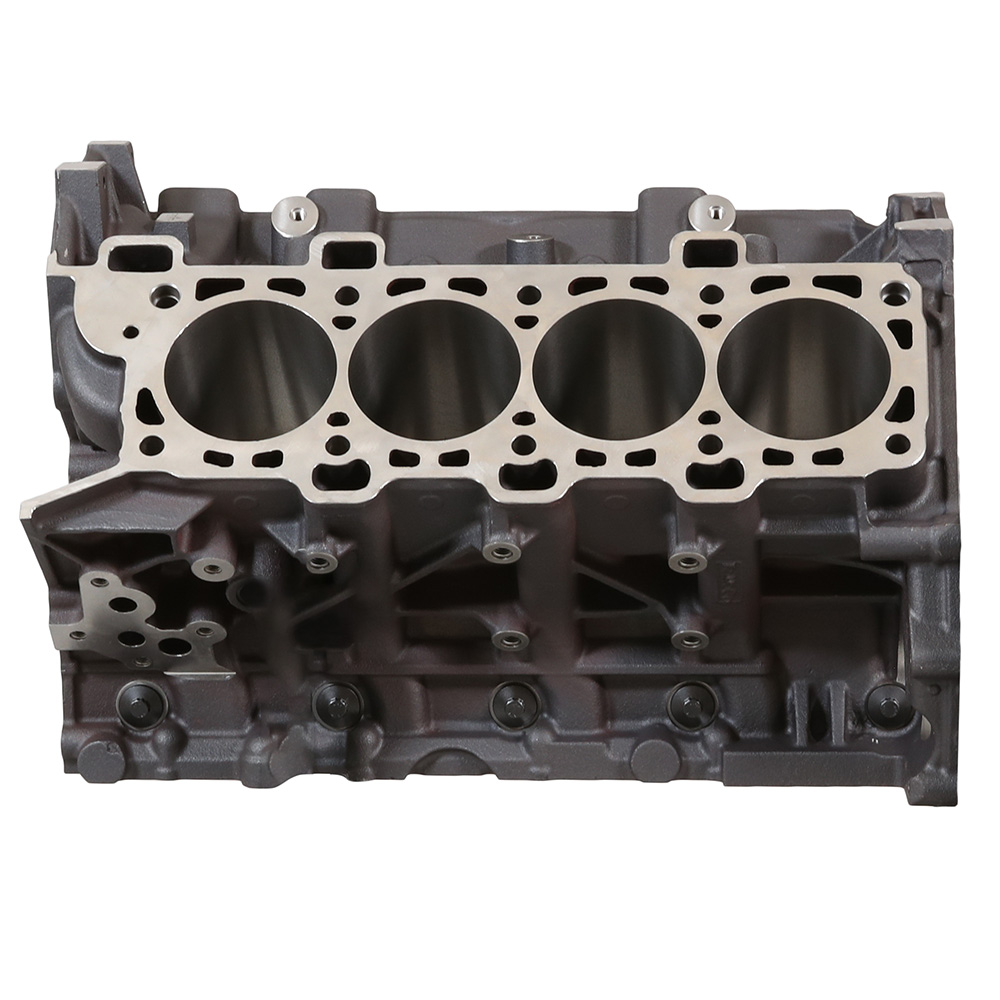

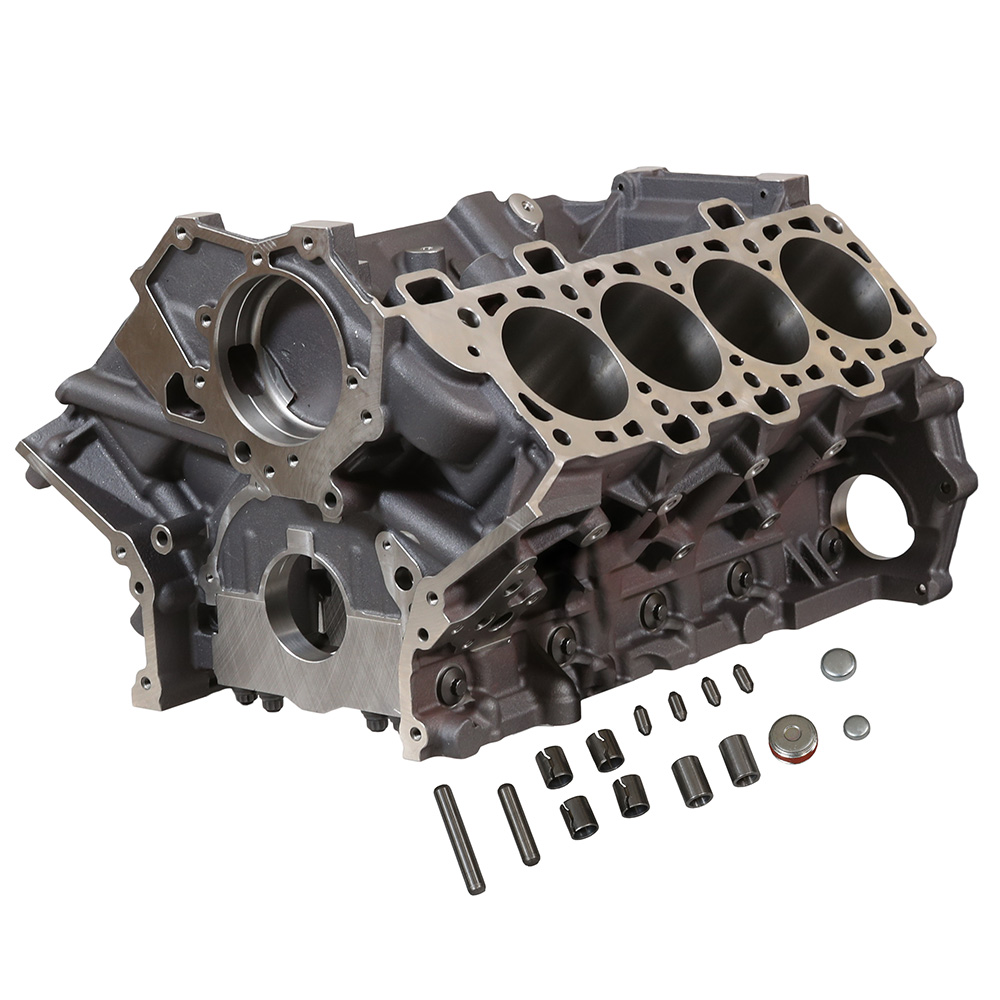

COYOTE CAST IRON RACE BLOCK

Ford Performance cast iron version of the Coyote engine block. Cast from a proprietary grade class 50 iron. Designed for extra strength for max-effort / boosted Coyote engine builds.

• Deck height: 227 mm (8.937")
• Rough bore can be finished to 93 mm (3.661") GEN 3 size
• Maximum bore: 95.0 mm (3.740")
• Maximum stroke: 99 mm (3.897")
• Maximum displacement: 5.6L
• Standard Coyote 100 mm bore spacing
• Lengthened bores for added strength
• Revised deck design for added strength around the water jackets
• Designed for 12 mm ARP head stud kit 456-4303
• Head bolt holes are NOT machined for the production length head bolts.
• Material available to drill and tap for production length head bolts
• Billet steel 6 bolt main caps with ARP hardware
• Accepts Gen 1 and Gen 2 Coyote 5.0L cylinder heads
• Accepts Gen 1, Gen 2, and Gen 3 GT350 5.2L cylinder heads
• Requires head gasket to match cylinder head
• Weight = 203# when finished to a 94mm bore
• Recommended forged steel crankshafts M-6303-M52B or M-6303-M52P
