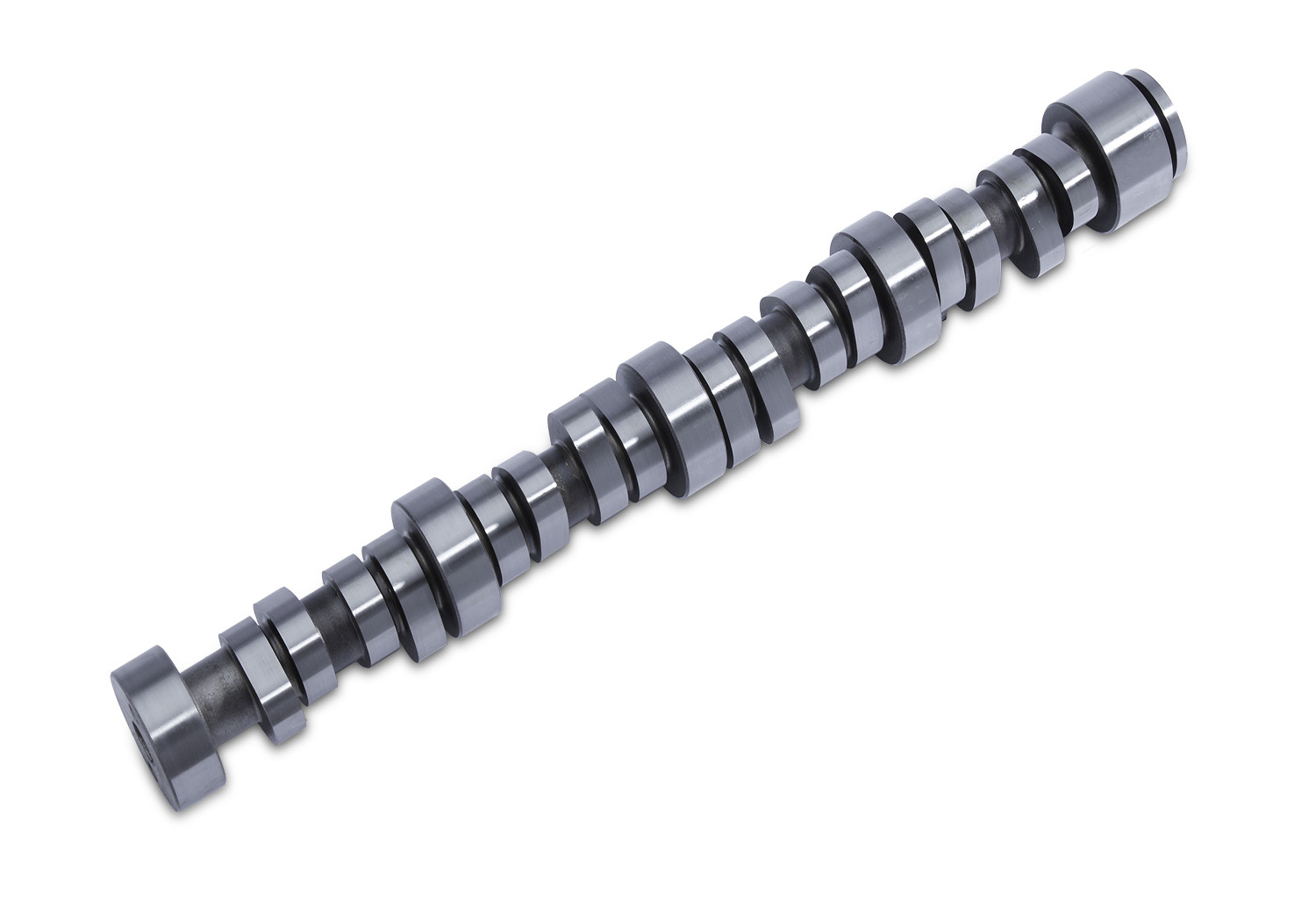

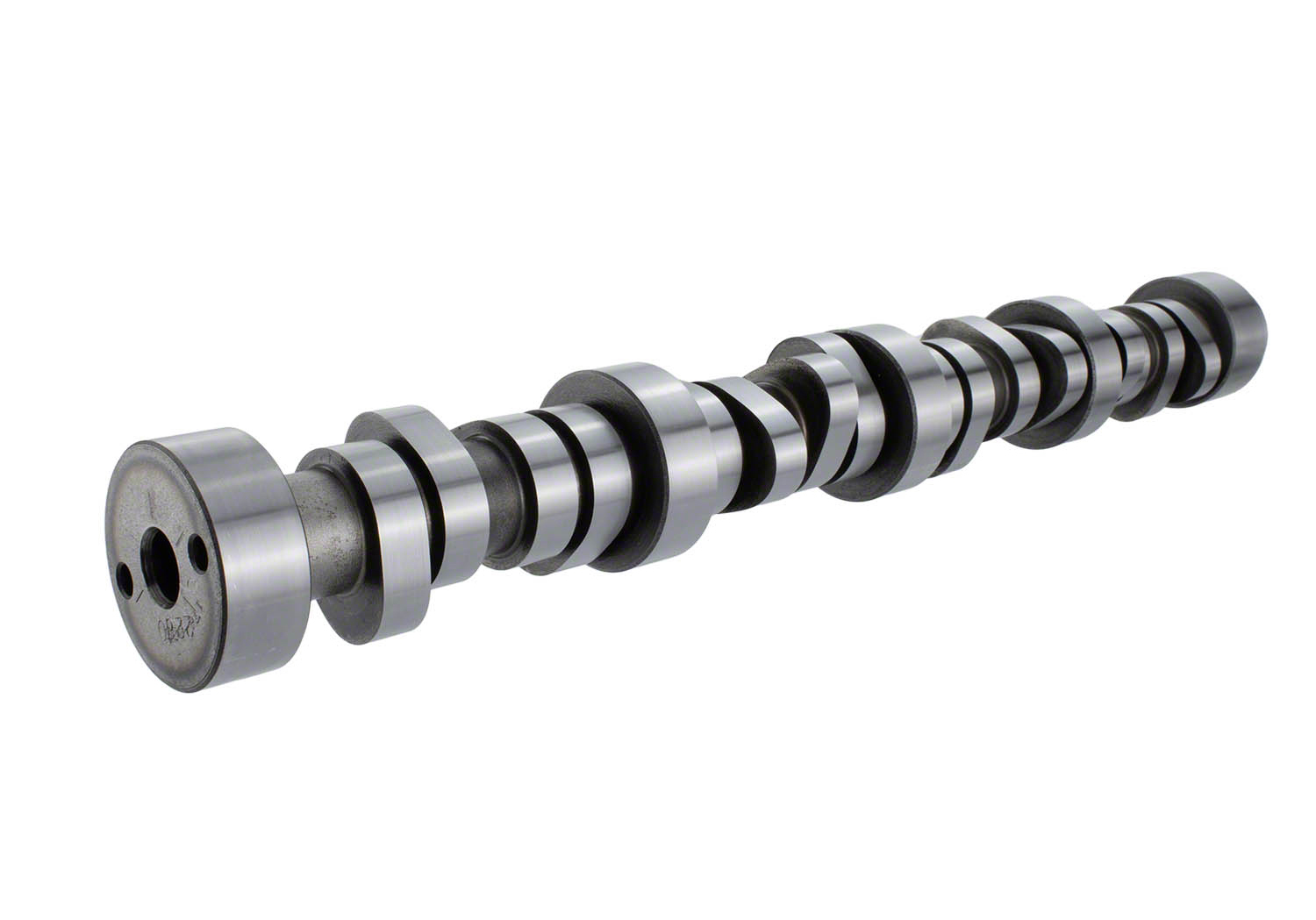

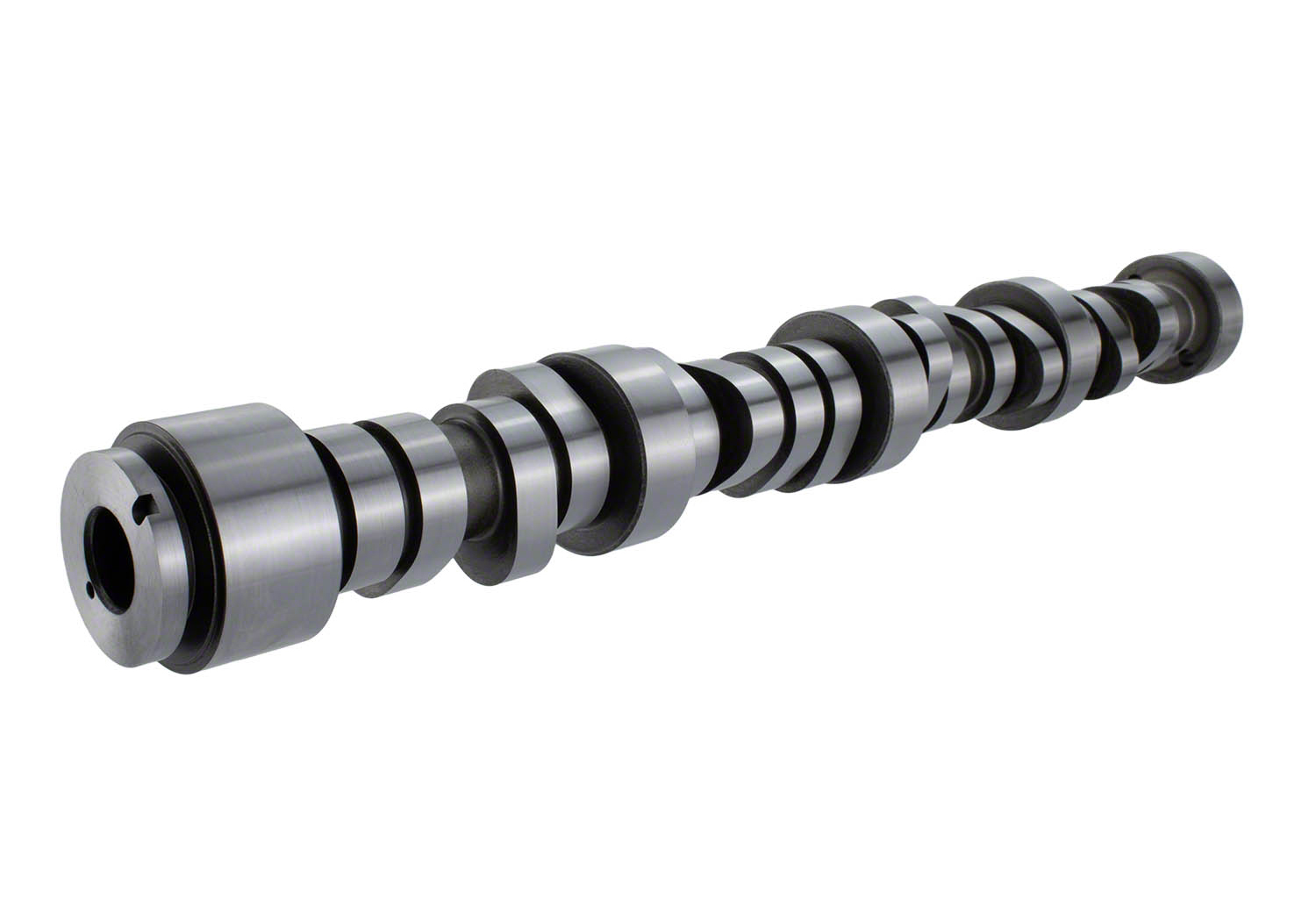

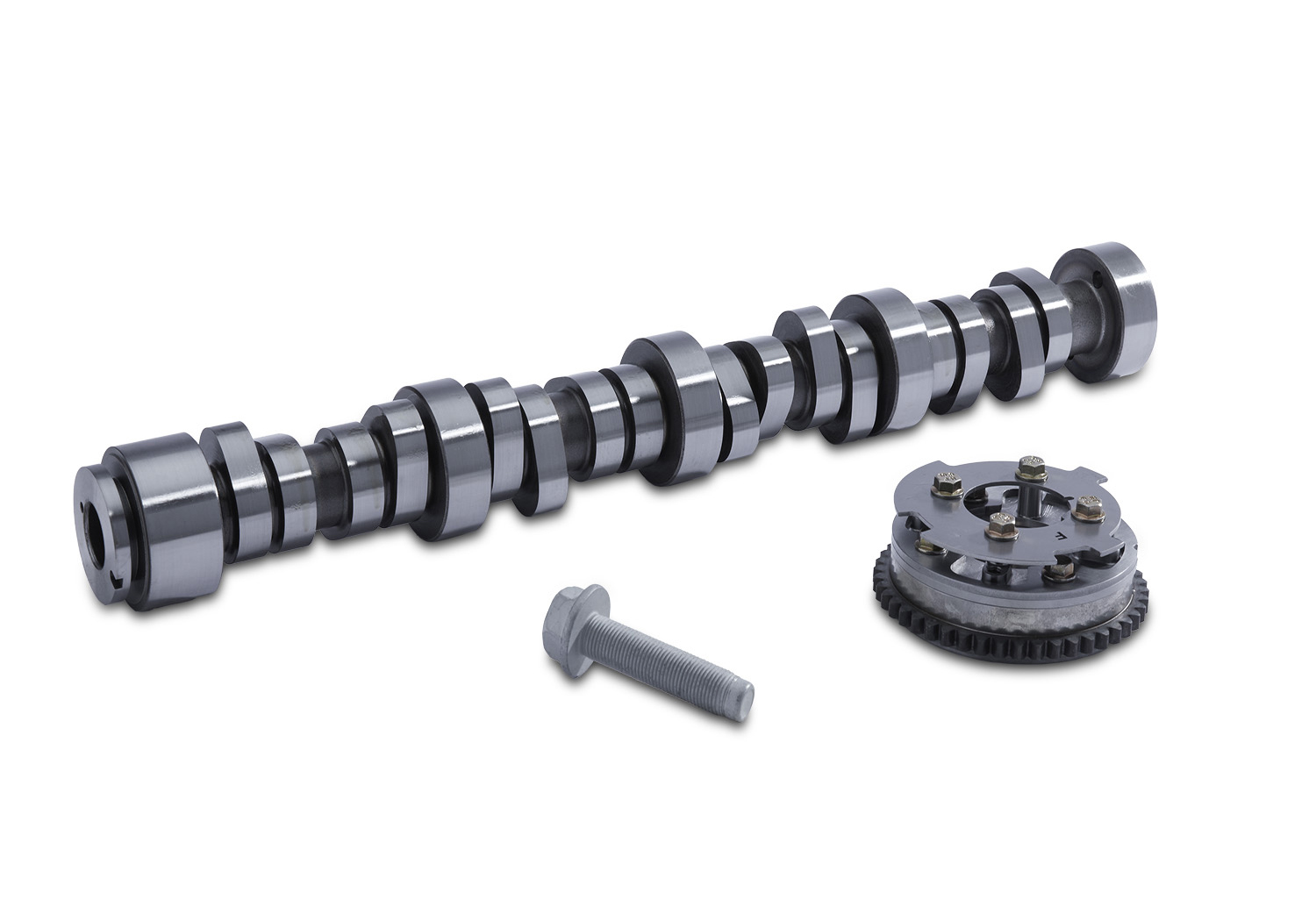

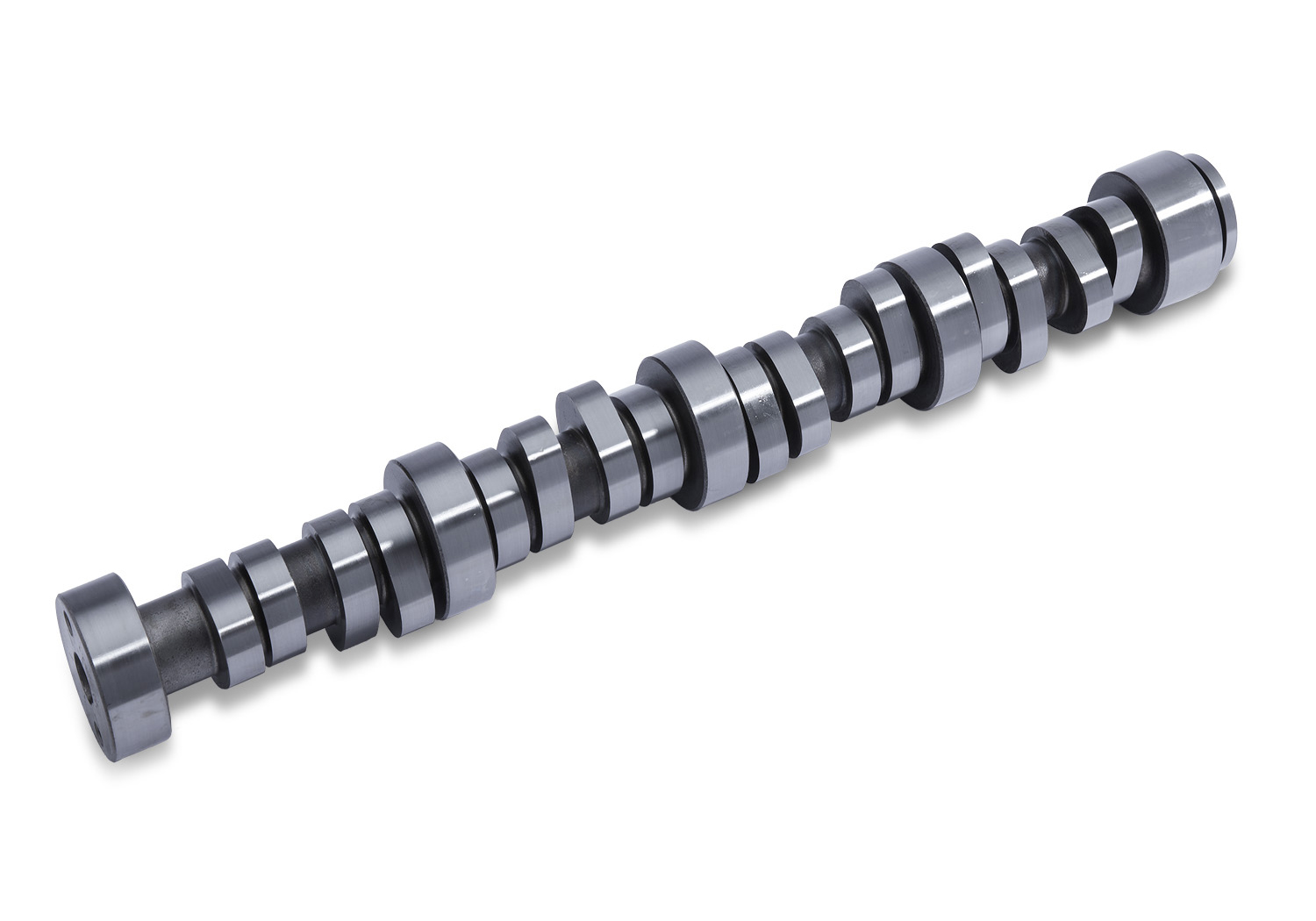

7.3L MEGAZILLA™ HI-PERFORMANCE CAMSHAFT
M-6250-SD73A
Retail
$1,815.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Unleash the beast within your engine with the 7.3L MEGAZILLA™ HI-PERFORMANCE CAMSHAFT, just like the one in our Megazilla™ crate engine. Experience ultimate power and precision with enhanced intake and exhaust dynamics, ensuring peak performance on every drive.
Ford Performance 7.3L hi-performance cam as used in the Megazilla™ crate engine.
- Intake duration: 220 degrees @ .050" / 276 degrees @ .006"
- Exhaust duration: 226 degrees @ .050" / 282 degrees @ .006"
- Intake lobe lift: .350" / valve lift: .630" with 1.8 ratio rocker arm
- Exhaust lobe lift: .345" / valve lift: .621" with 1.8 ratio rocker arm
- Intake centerline: 105 degrees ATDC
- Exhaust centerline: 117 degrees BTDC
- Lobe separation: 111 degrees

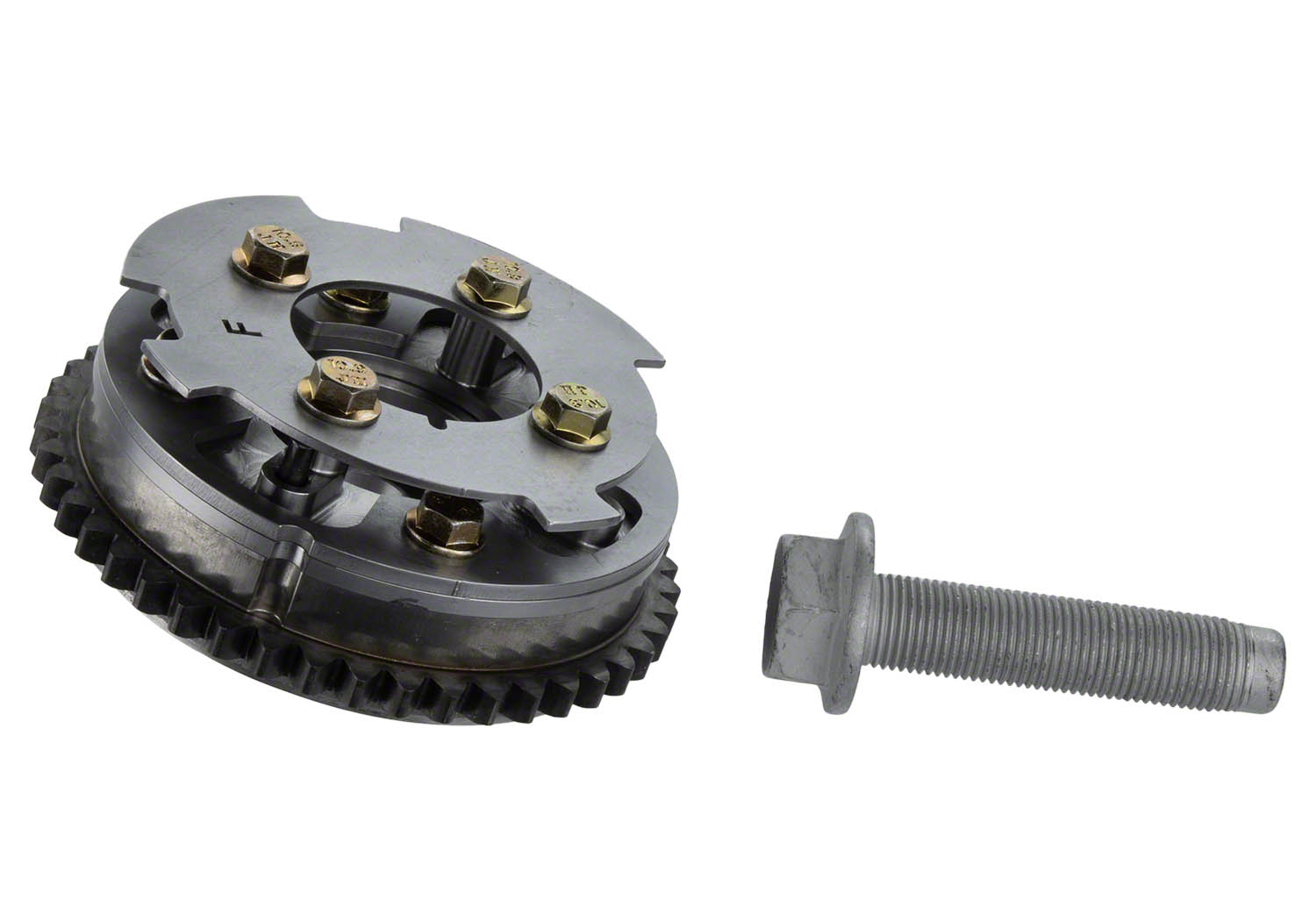

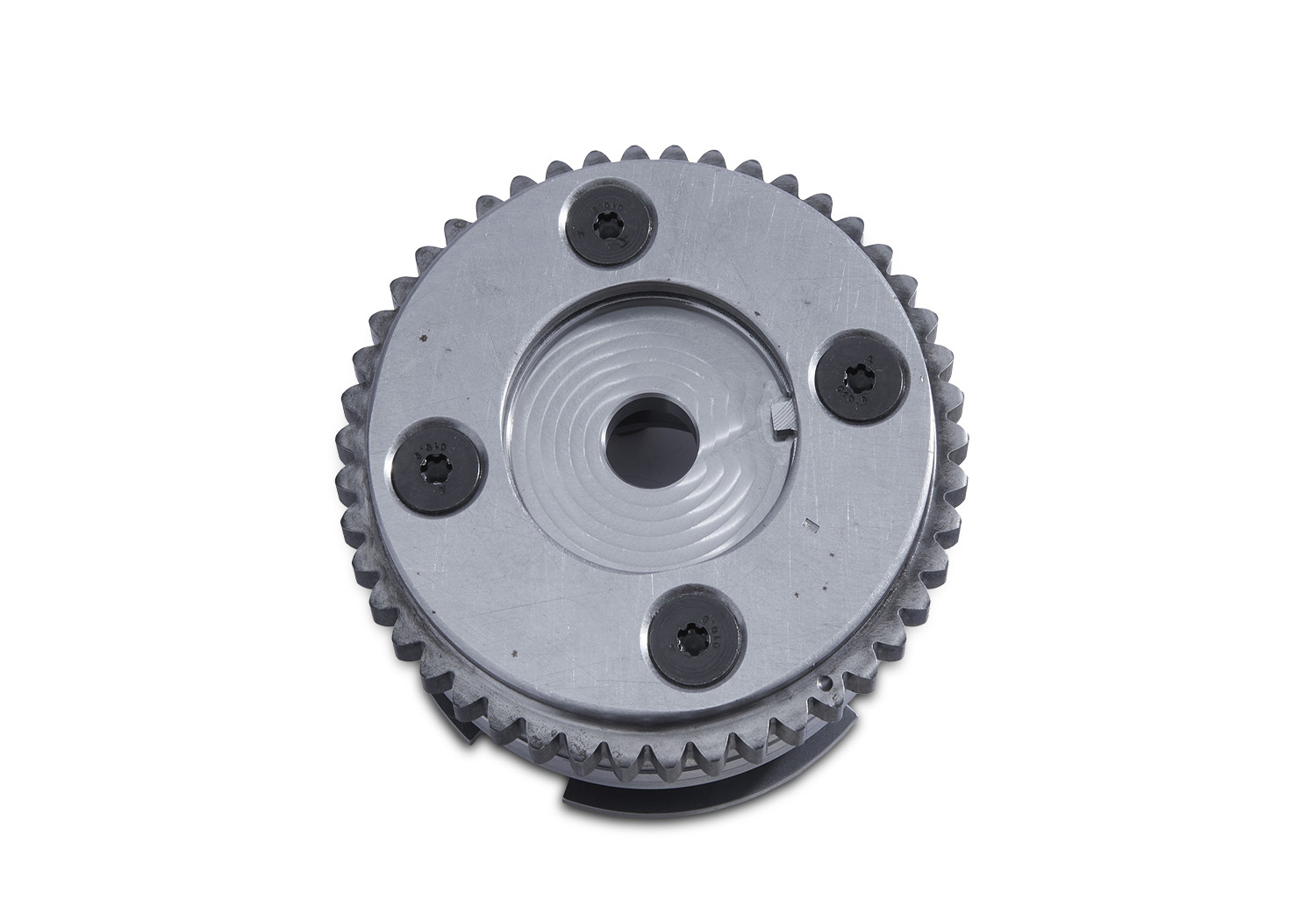

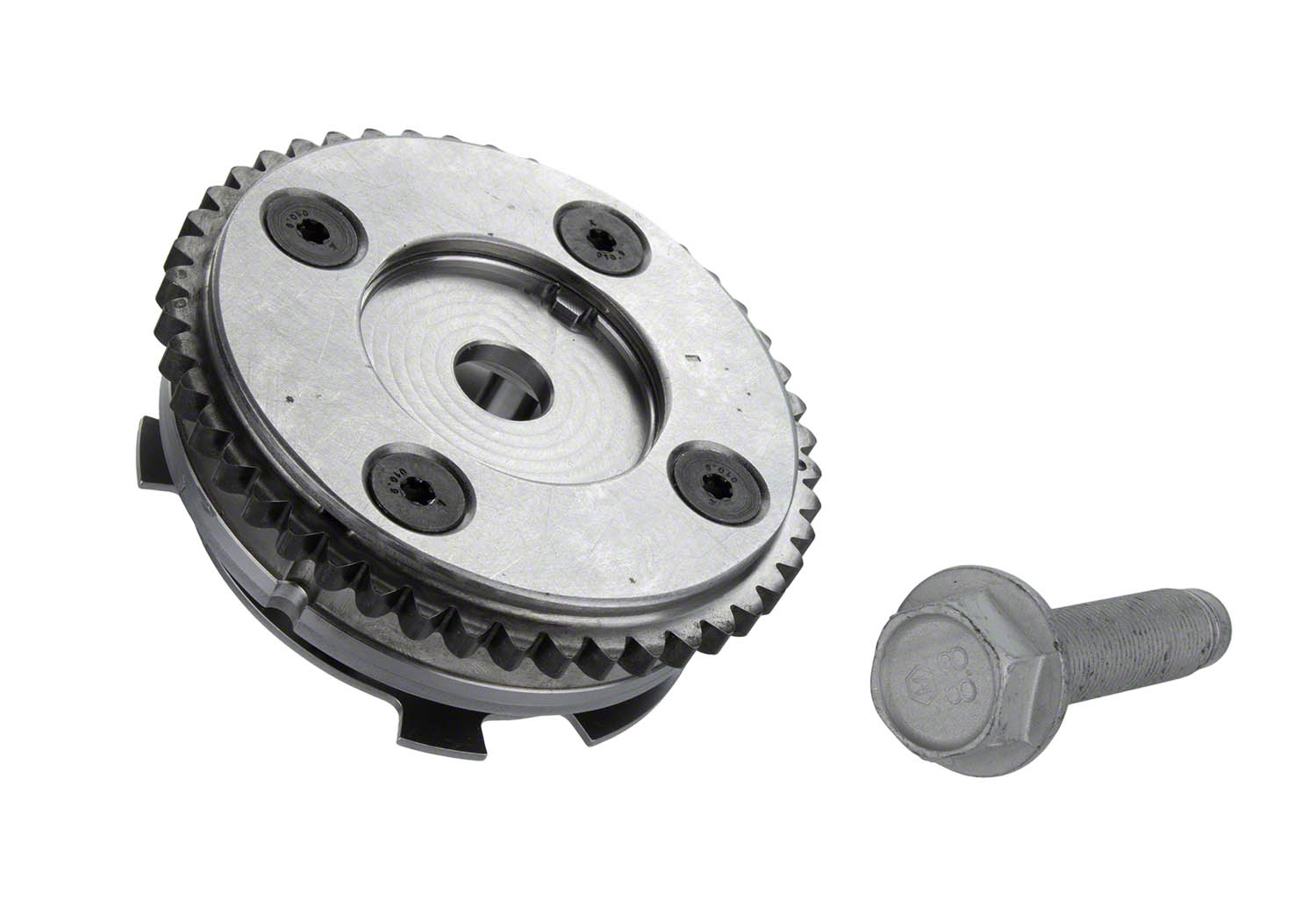

- Variable cam timing lockout gear/bolt included (torque to 55 lb-ft + 50 degrees)
- Upgraded valve springs required - PAC 1282LX or equivalent recommended
Part Type
Engine: Cam/Tappets/Pushrods
Warranty Availability
Package Dimensions
15" x 11" x 27.5"
Package Weight
18 lb(s)
UPC Code
756122019771
Country of Origin
United States
