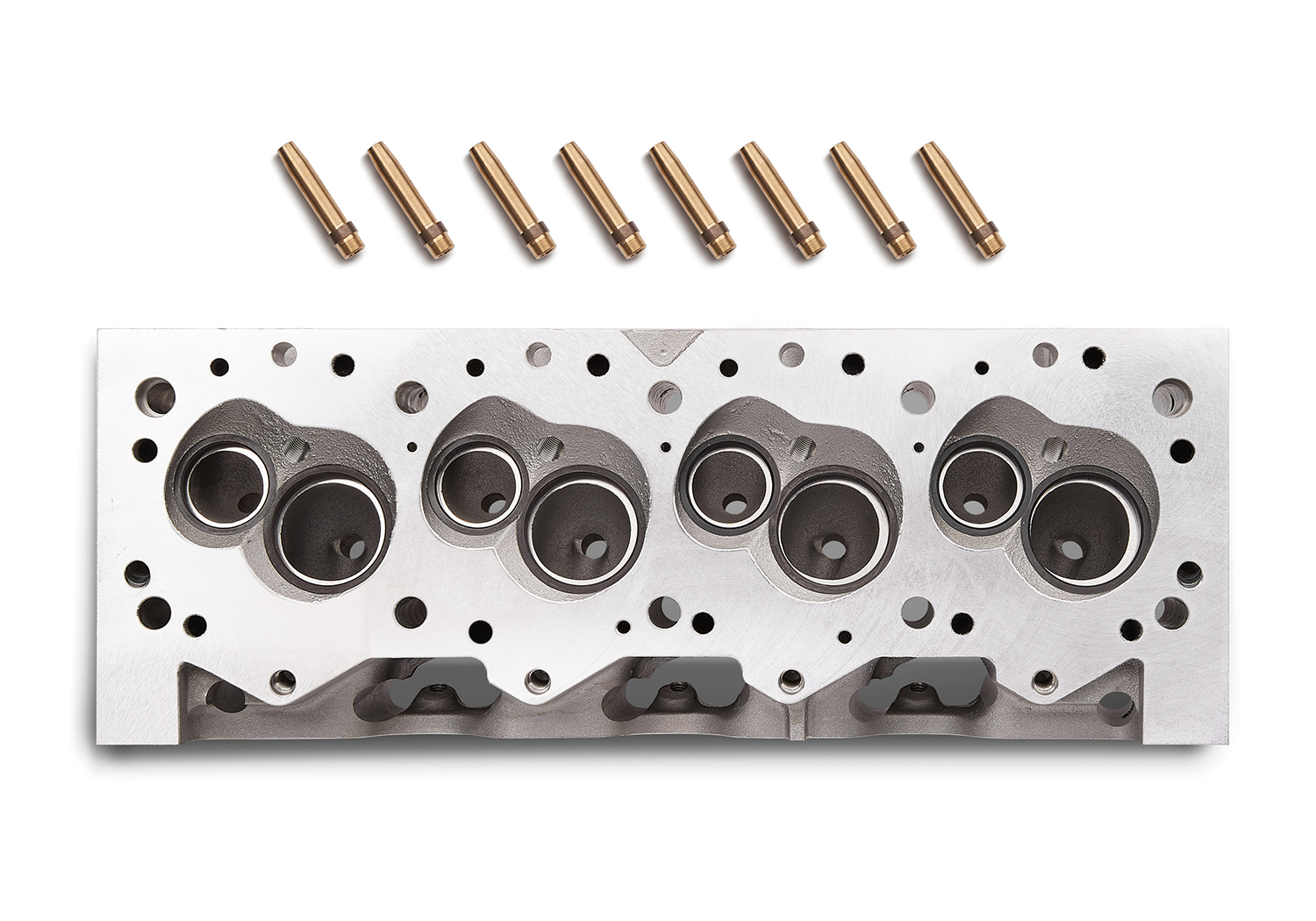

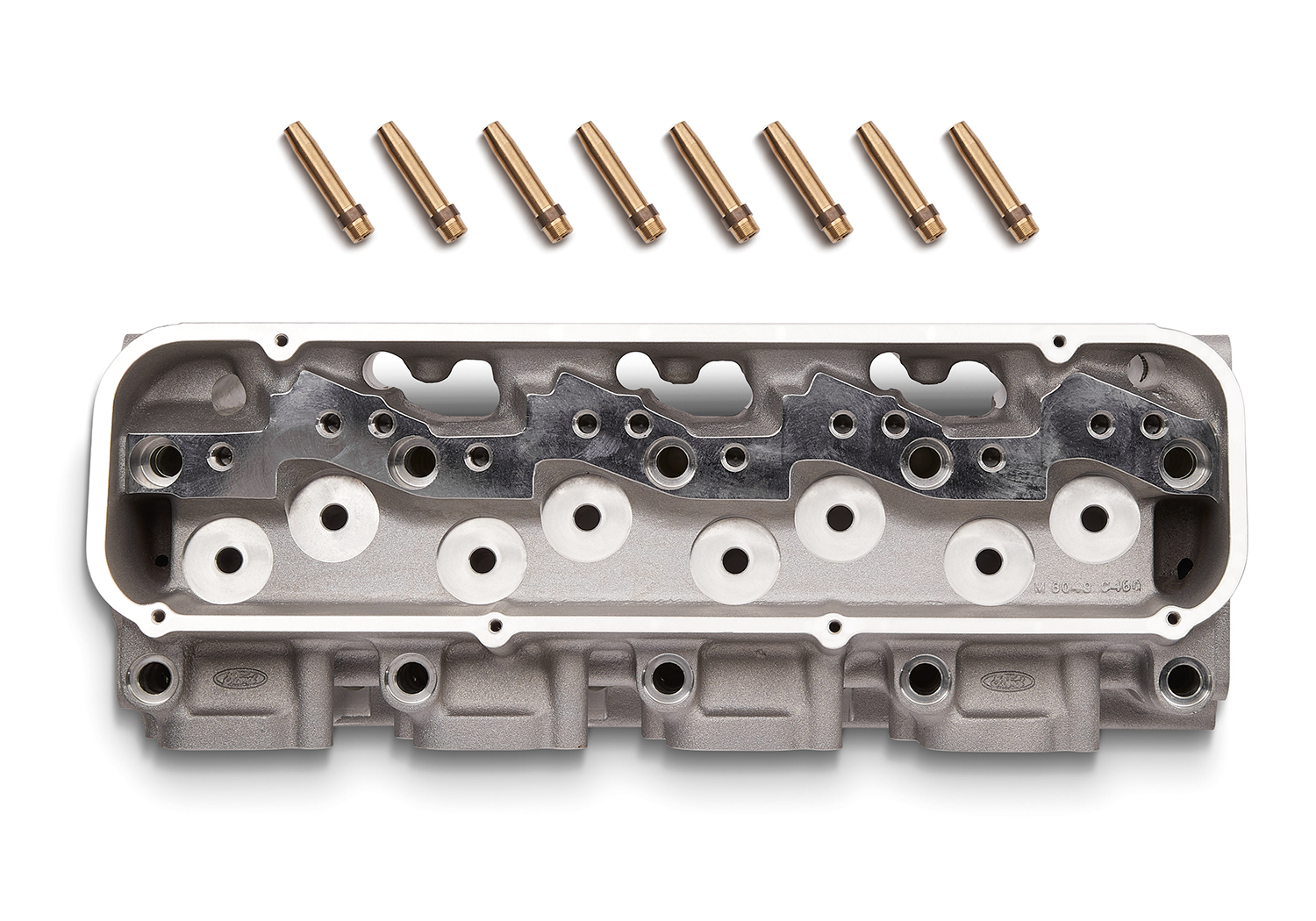

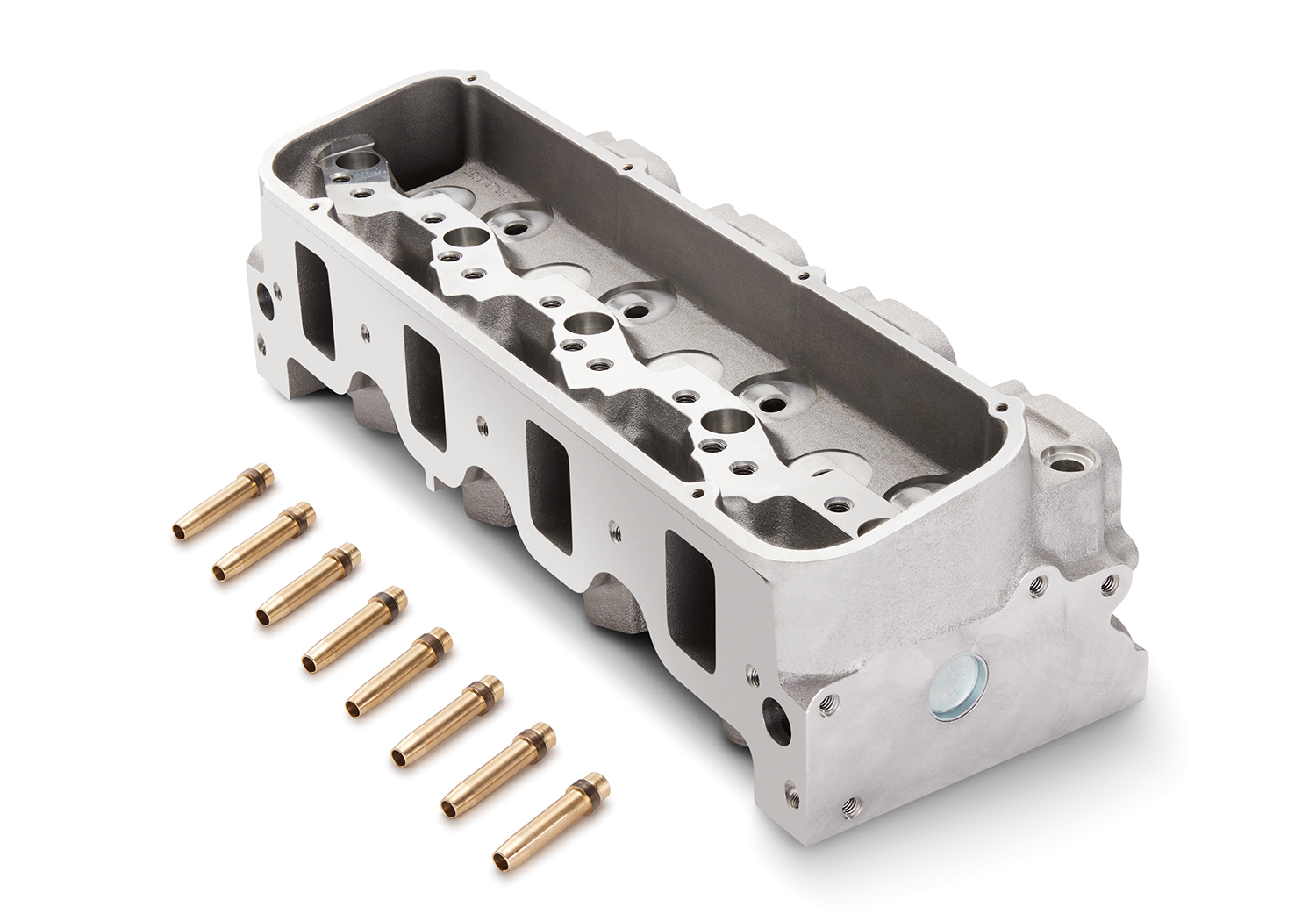

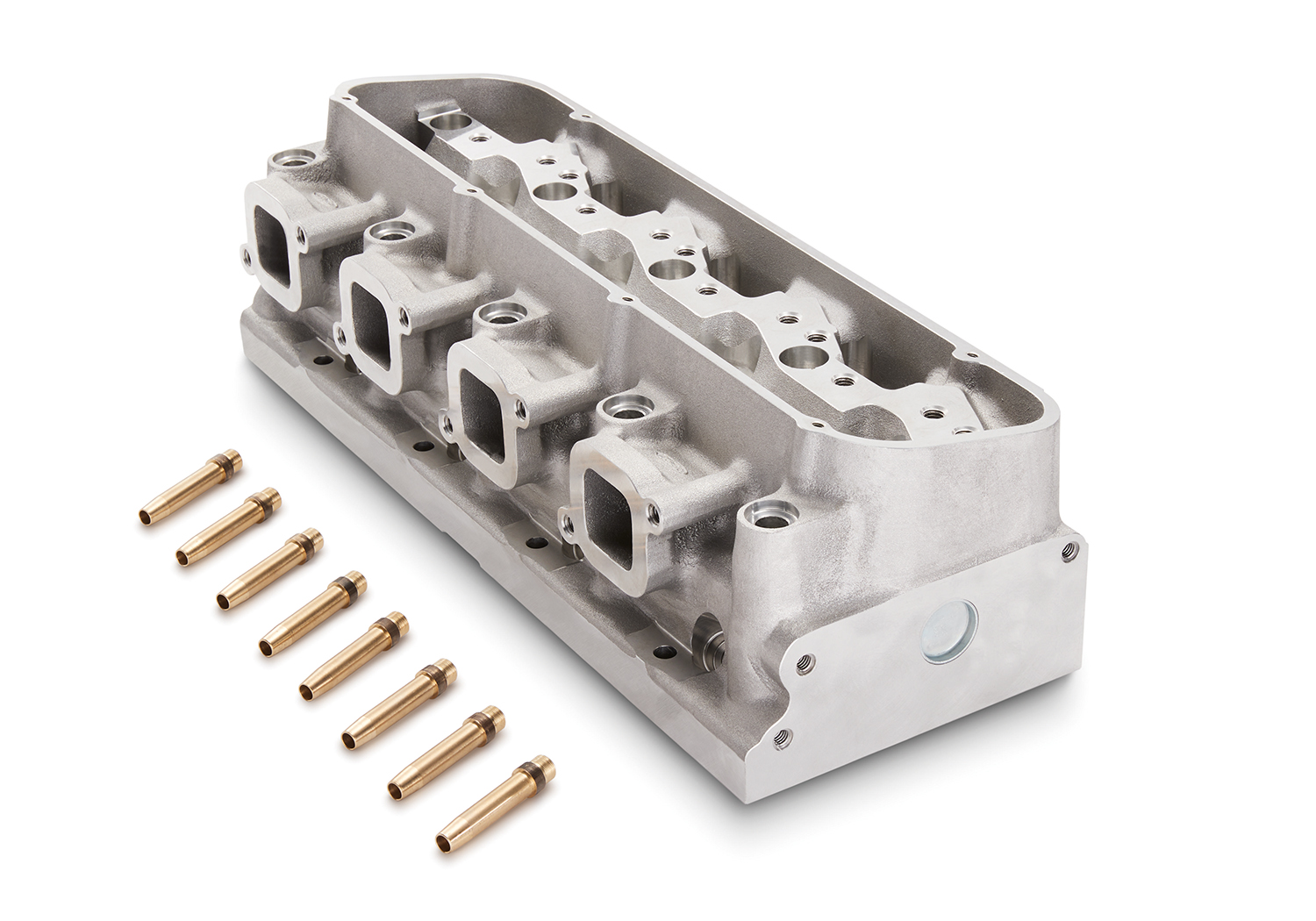

FORD PERFORMANCE 460 "SPORTSMAN" WEDGE-STYLE CYLINDER HEADS
M-6049-C460
Retail
$1,650.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
Dominate the track with Ford Performance 460 "Sportsman" Wedge-Style Cylinder Heads, expertly crafted from 356-T6 aluminum for ultimate strength and precision airflow. Designed for serious racers, these heads deliver unmatched combustion efficiency for a winning edge.
- For use with M-6010-A460X and M-6010-A460XBB Ford Racing cylinder block
- Used for professional competition and serious "Sportsman" racers
- Made from 356-T6 aluminum, with bronze valve guides and a premium valve seat insert material compatible with titanium valves
- Valve angles are 7.5 degrees intake, 8.0 degrees exhaust with no side cant
- Raised intake and exhaust ports
- 65cc wedge-style combustion chamber
- 4.600" recommended bore size (4.500" minimum)
- 2.450" intake, 1.900" exhaust recommended diameters
- Port and combustion chamber design based on Ford Performance 351 "Yates" cylinder head
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Package Dimensions
9.25" x 8.5" x 23"
Package Weight
43.13 lb(s)
UPC Code
756122604137
Country of Origin
United States
