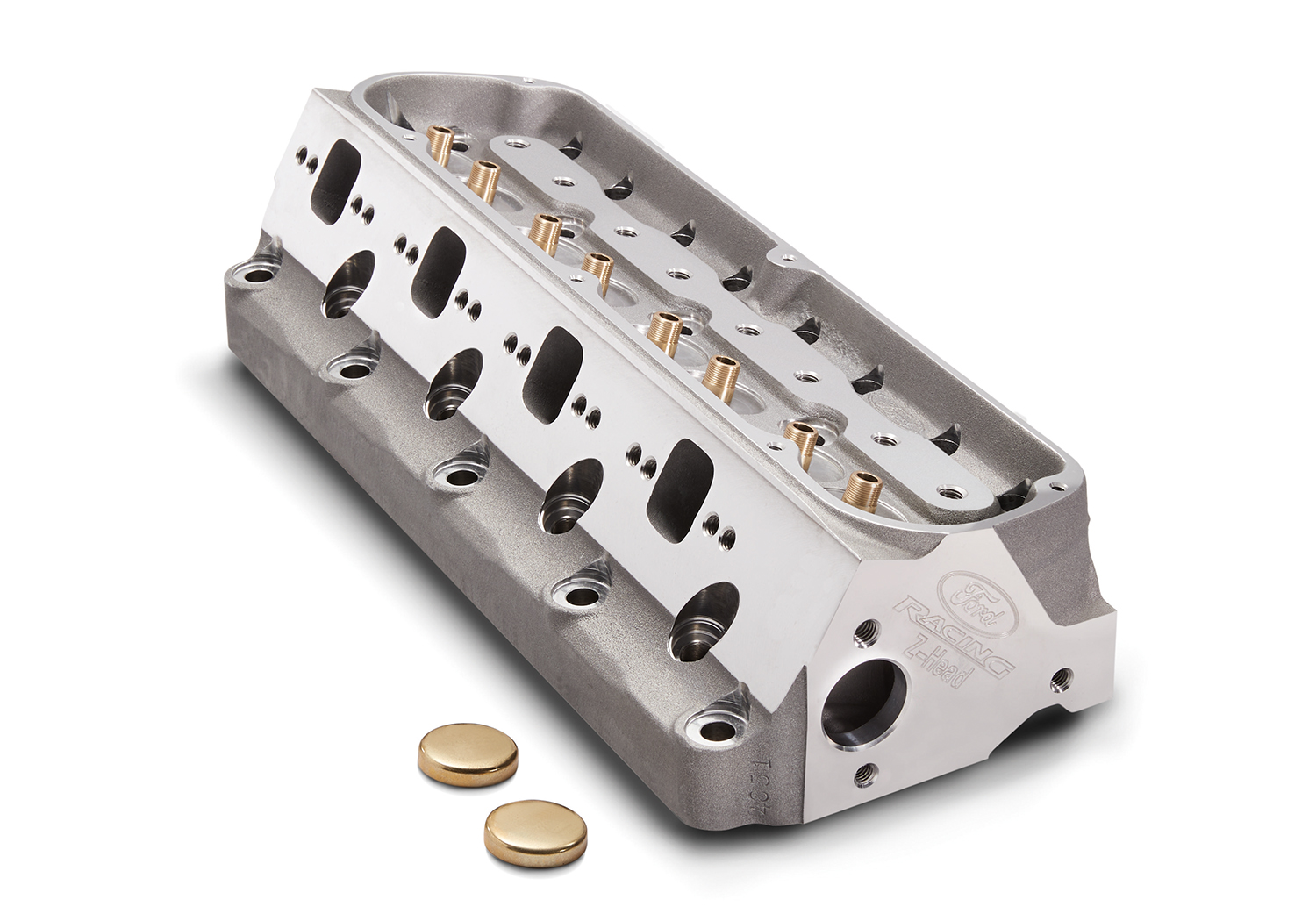

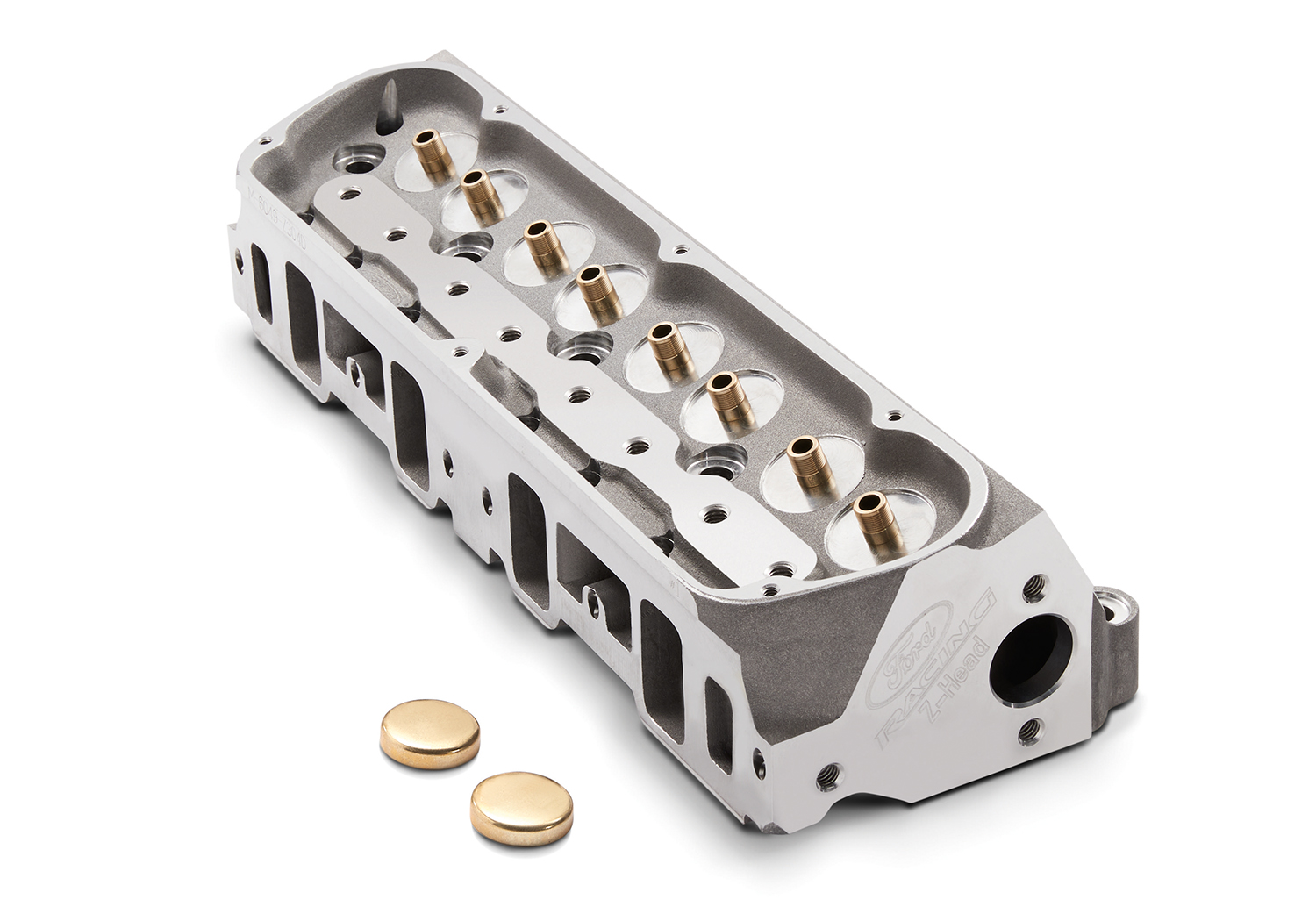

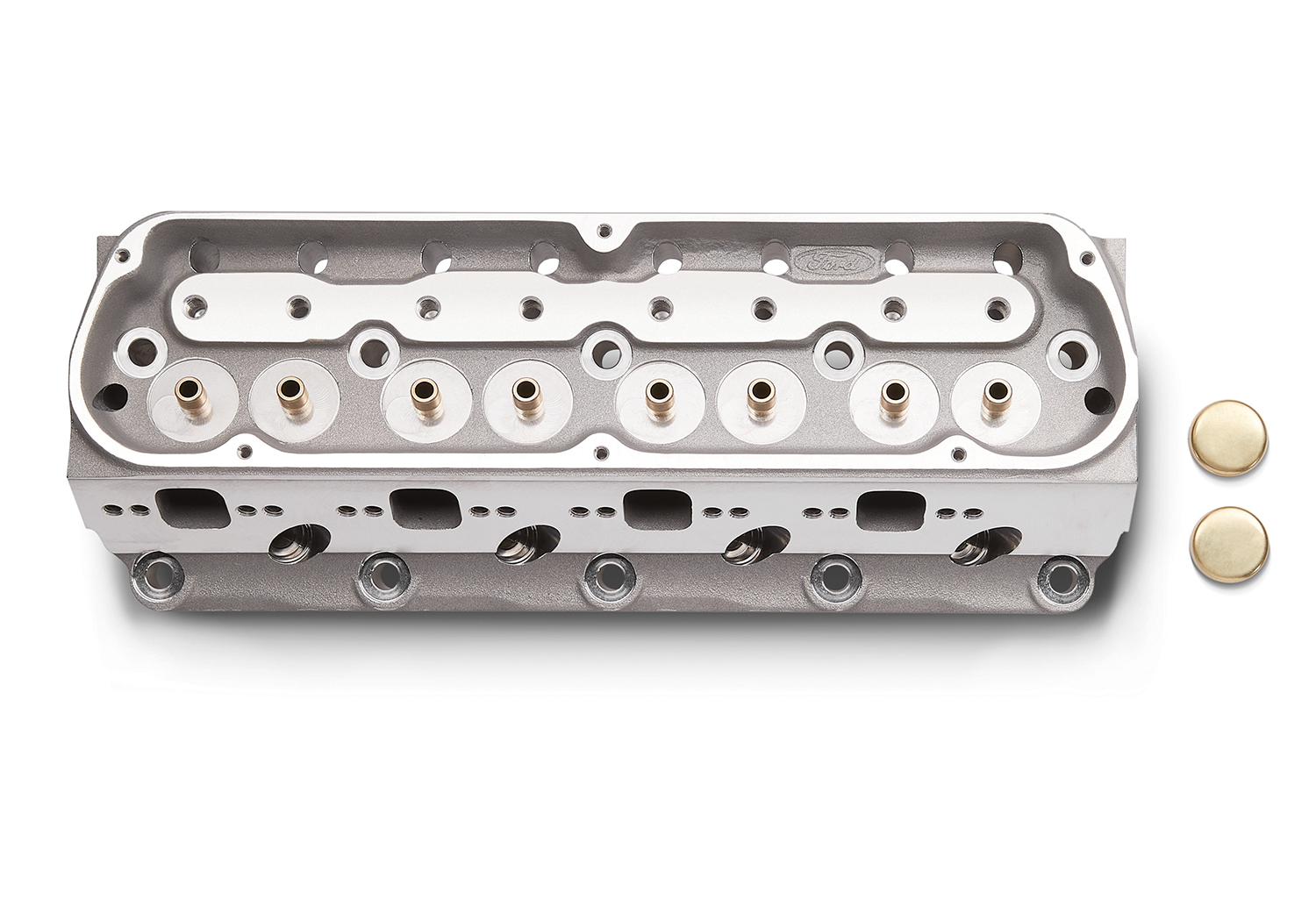

302/351W "Z-HEAD" ALUMINUM HEAD - BARE 63CC
M-6049-Z304D
Retail
$1,050.00
Sold in Units of
Each (1)
Instruction Sheet
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
-
Bare Head Features
-
For assembled head see M-6049-Z304DA
-
Fits 302/351 Windsor engines
- This cylinder head was designed using Solid Modeling Technology
- Cast from prime A356 T6 aluminum
- Heads are cast with high-flow ports
- 20 degree inline valves
- Suggested valve sizes: 2.02" intake and 1.60" exhaust
- Requires competition valve job and bowl blending
- Steel alloy intake and exhaust valve seats installed (no valve job)
- Manganese-bronze valve guides installed with semi-finished ID

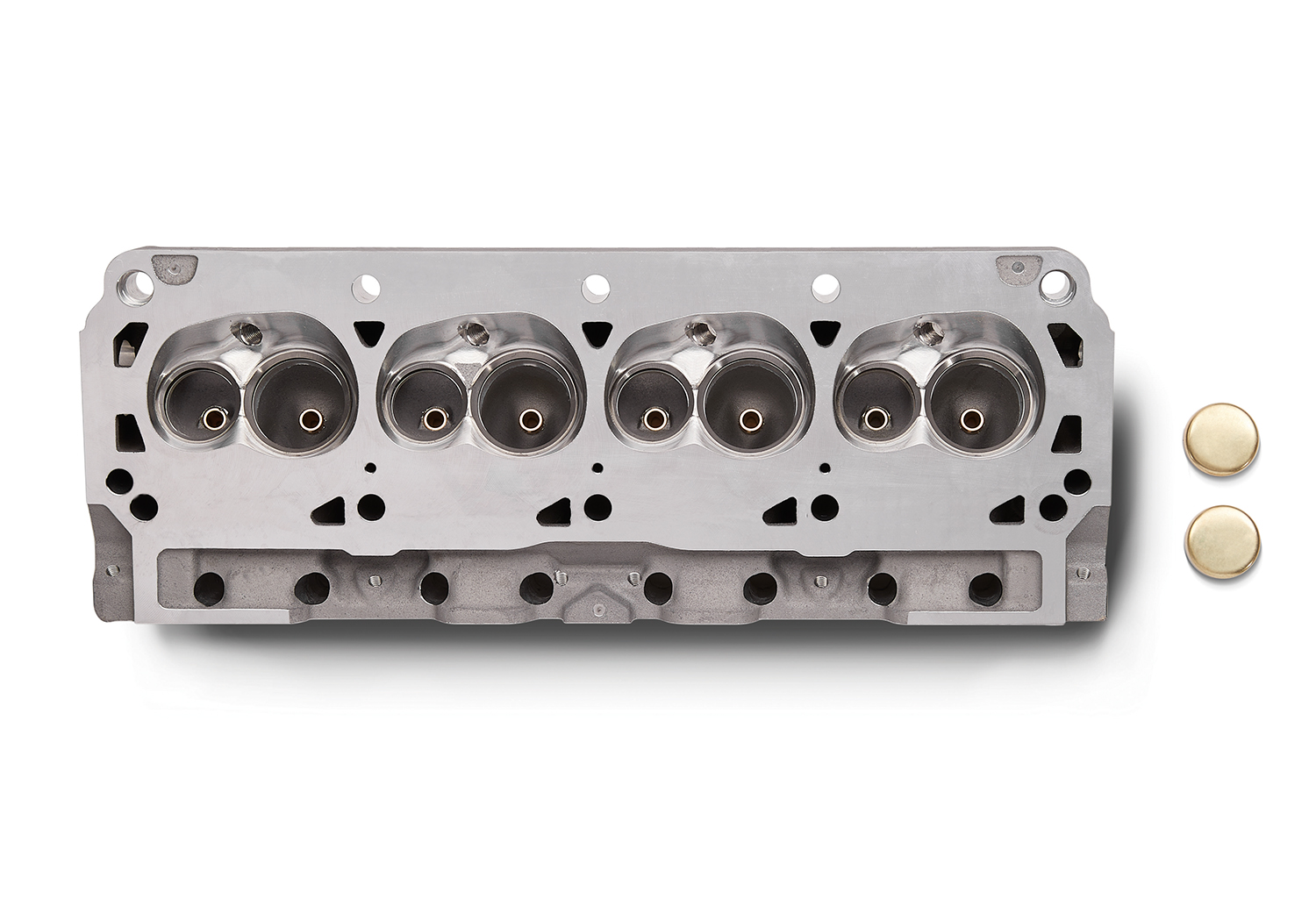

- 63cc CNC'd combustion chamber
- Intake port volume as cast: 204cc
- Exhaust port volume as cast: 85cc
- Bare head weighs 27 lbs.
- Accepts both tapered seat and gasket style 14mm spark plugs (Motorcraft AGSP-32-PP, Autolite 3924, 3925)
- Requires guide plate M-6566-Z304D (not included)
- Requires 7/16" screw-in studs (not included). Requires 1.65:1 or 1.5:1 ratio roller rocker arms with .150" offset intake pushrod cup (not included)
- Uses M-6505-B304 exhaust valve and M-6507-A304 intake valve (not included)
- Raised exhaust port exit, custom headers may be required
- Check your intake manifold for port match; not all intakes are compatible due to the tall high-flow ports. Does not fit M-9424-Z51/-Z51P
- Uses Felpro® exhaust gasket part number 1487
- Felpro® VS13264T valve cover gasket recommended
Part Type
Engine: Cylinder Heads
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
8" x 24" x 8"
Package Weight
24 lb(s)
UPC Code
756122089316
Country of Origin
United States
