Proudly Made in Canada

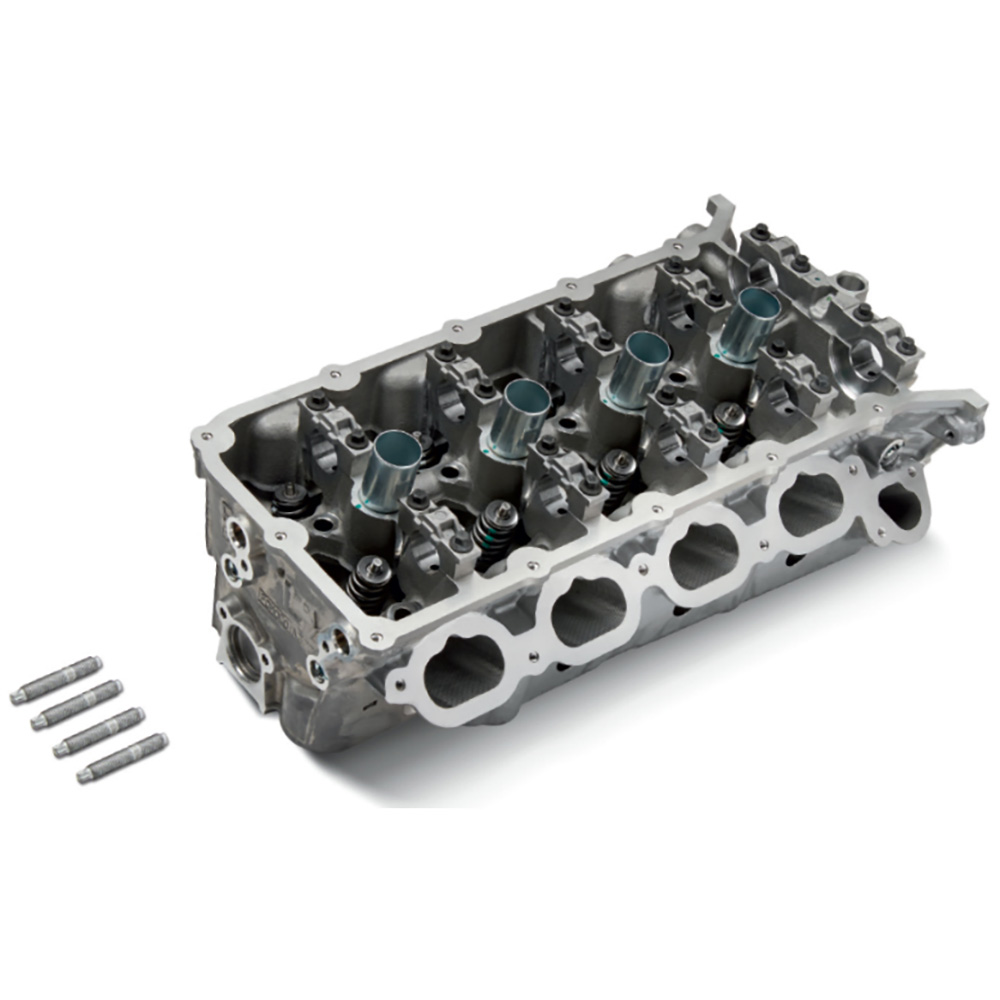

  • Upgraded version of Ford Performance M-6050-M52A 5.2L cylinder head
  • Production 2021 GT500 LH cylinder head
  • Improved high-performance 5.2L head castings provide added strength and increased size of central cooling passages, to support higher horsepower engine builds

  • Fully CNC ported intake ports, exhaust ports, and combustion chamber
  • Larger port sizing than the 2015-2017 5.0L Coyote cylinder heads
  • 38.2mm intake valve and 32.5mm exhaust valve
  • For reference, 2015-2017 5.0L Coyote valve sizes are 37.3mm intake, 31.8mm exhaust
  • New valvetrain geometry allows for higher valve lift
  • Lightweight hollow-stem intake valves and sodium-filled exhaust valves
  • Stiffer exhaust springs
  • Upgraded valve guides
  • Upgraded exhaust valve seats
  • Loaded head assembly minus camshafts, rocker arms and lash adjusters
  • Use on a 5.0L Coyote requires unique camshaft due to valvetrain geometry, see M-6550-M52 or M-6550-M52A
  • Requires 5.2L rocker arms and lash adjusters, see  M-6564-M52
  • Installation of 5.2L heads on 5.0L engine requires piston modification for proper piston to valve clearance
  • For RH cylinder head see M-6049-M52B
Part Type
Engine: Cylinder Heads
Warranty Availability
Not Available
Package Dimensions
22" x 11" x 13"
Package Weight
42 lb(s)
UPC Code
756122015988
Country of Origin
Canada
