7.3L LH CNC PORTED CYLINDER HEAD
M-6050-SD73P
Retail
$2,035.00
Sold in Units of
Each (1)
Instruction Sheet
Not Available
This part is in your Wish List
This part has been added to your Wish List
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.

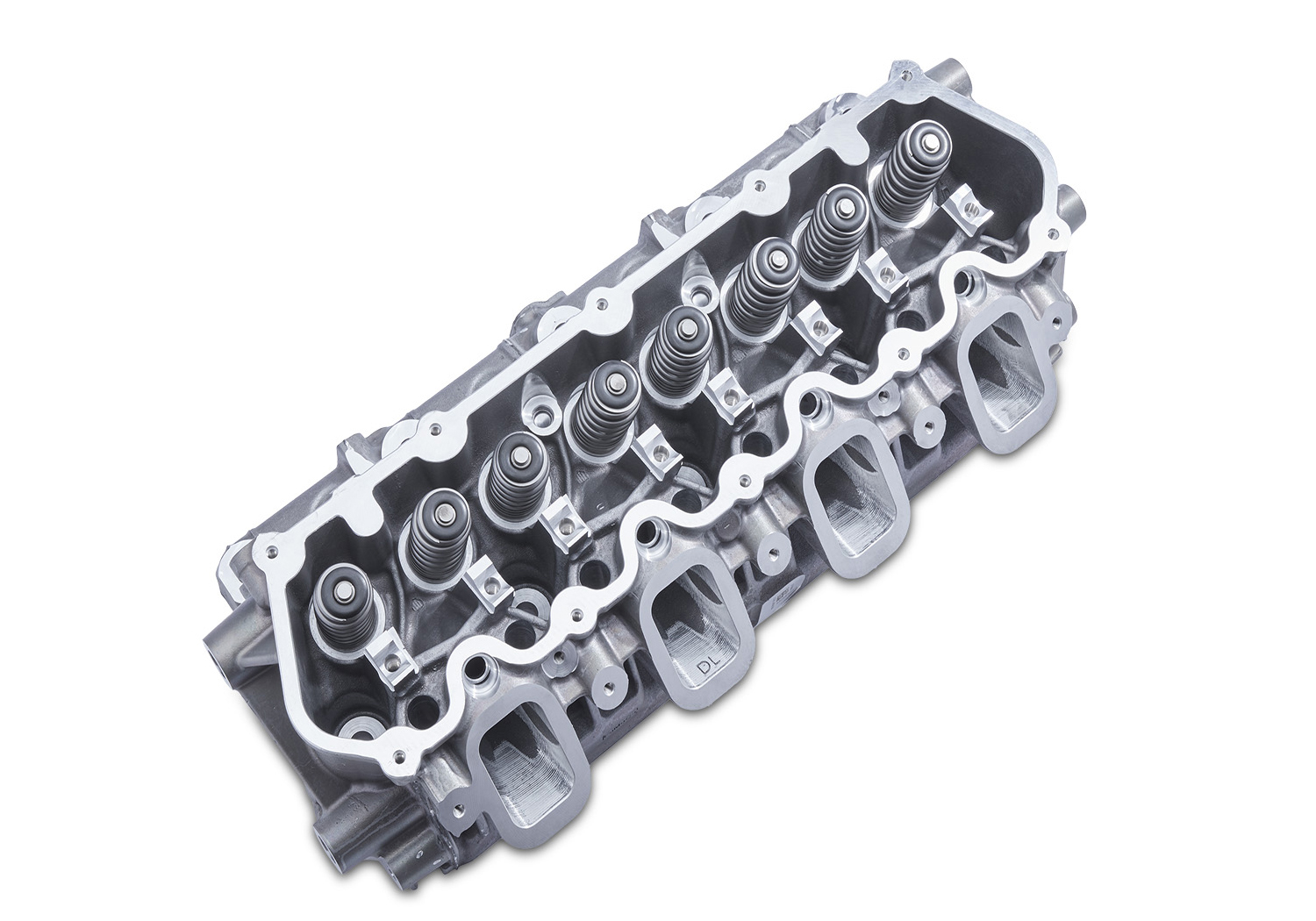

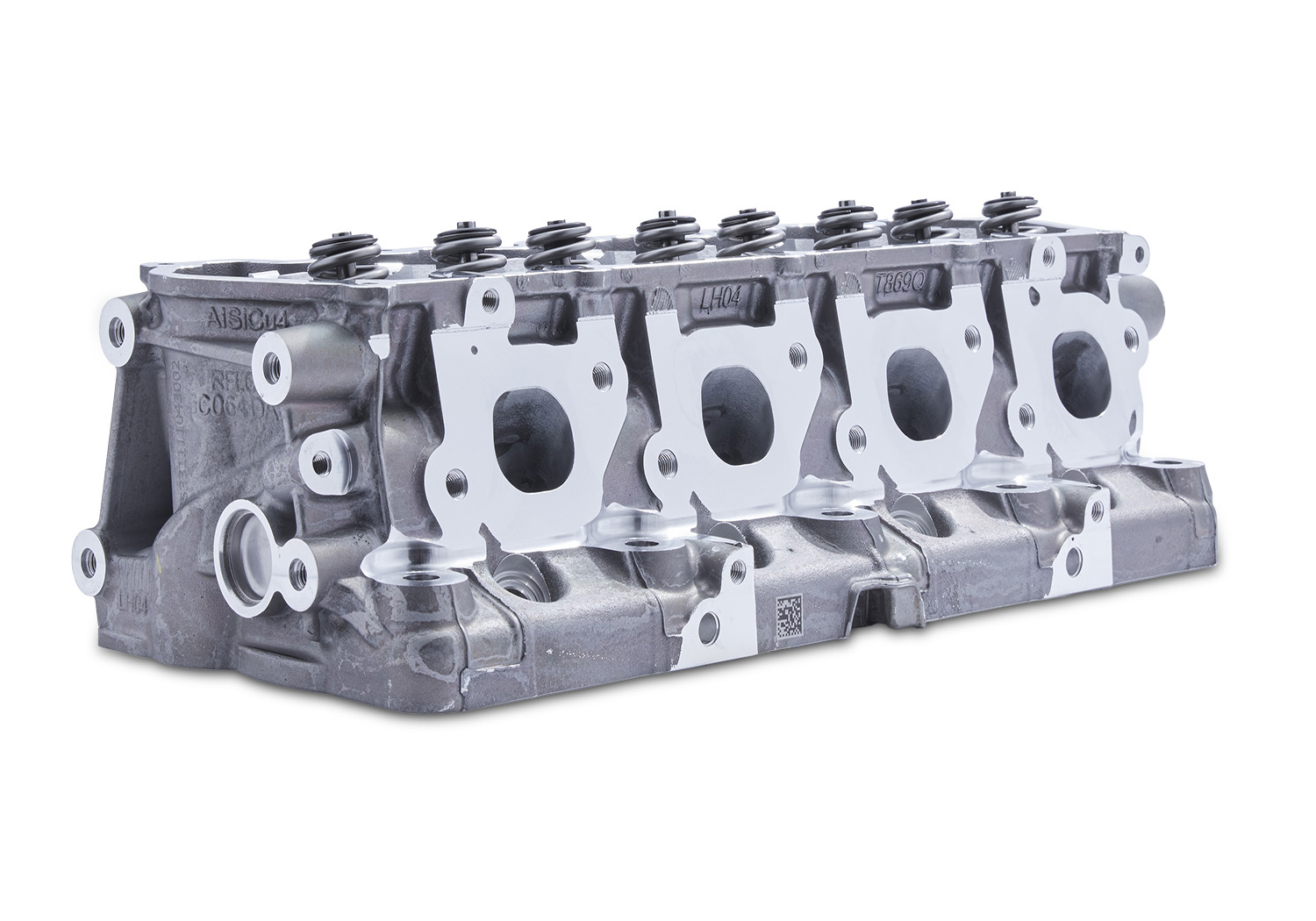

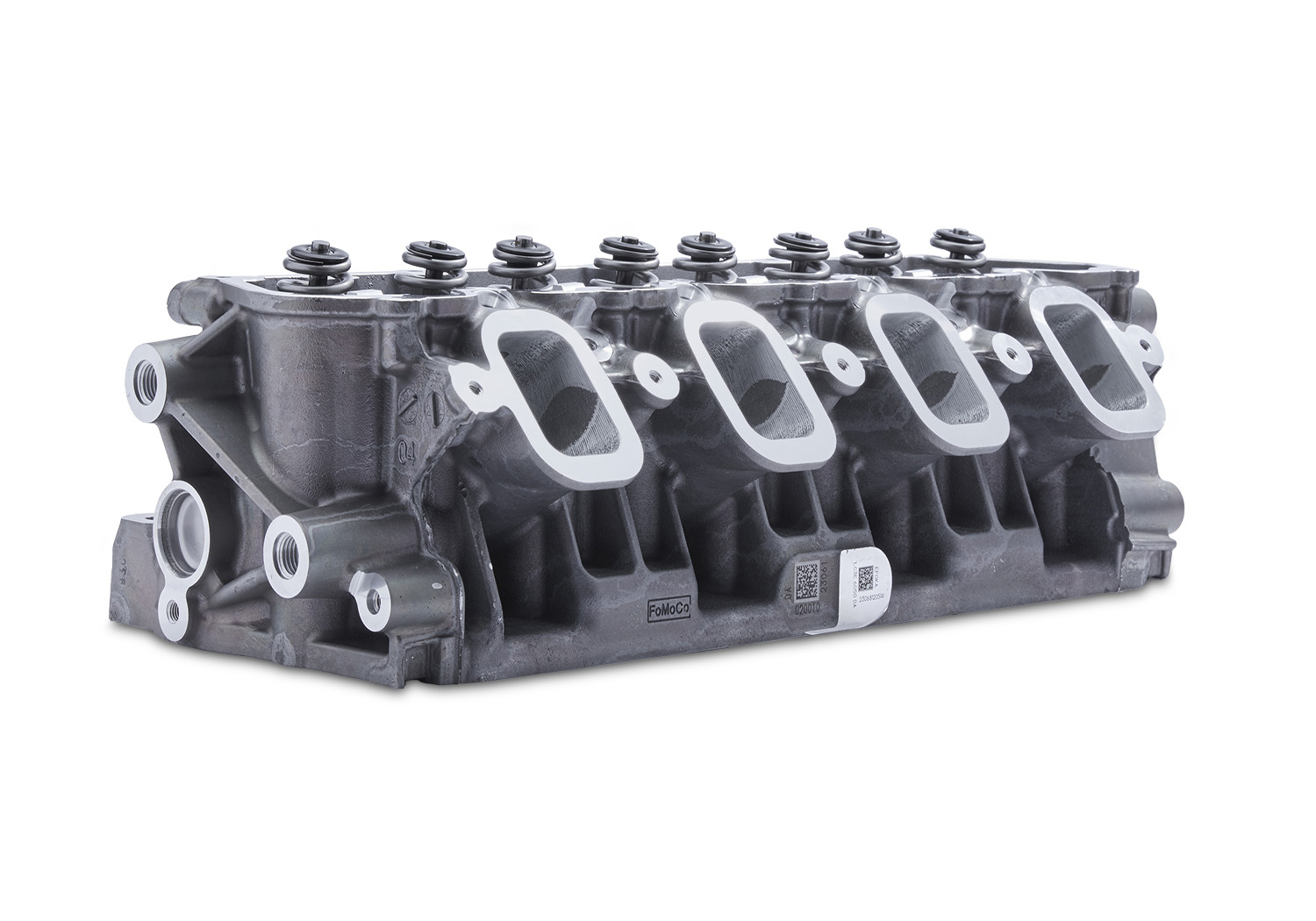

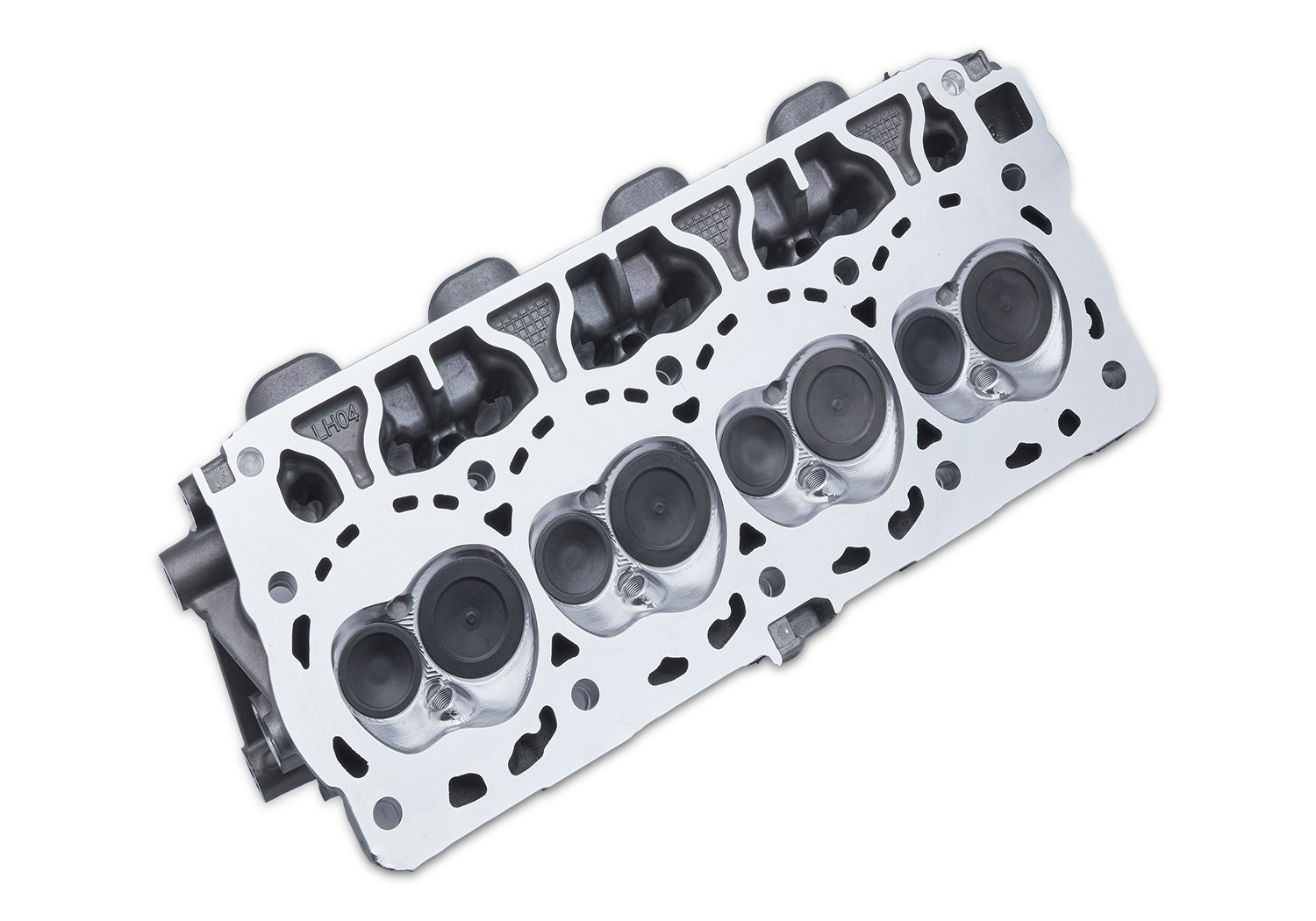

Ford Performance CNC ported left side cylinder head for 2020+ Super Duty 7.3L gasoline engine.
- Assembled ready for installation
-
CNC ported Cast aluminum
- As used in the Ford Performance Megazilla™ 615HP crate engine
- 62.4 cc combustion chamber
- PAC 1282LX valve springs / PAC R393 retainers
- 140-150# @ 2.350" installed height
- 390-415# @ 1.750" open
- Valve stem diameter: 8 mm
- Intake valve diameter: 55mm (2.165")
- Exhaust valve diameter 42.4mm (1.670")
- Flow data (CFM) @ 28" H20 on 4.250" bore
- For right side see M-6049-SD73P
| Stock Intake Port | M-6049-SD73P Intake | |||
| Lift | CFM | Lift | CFM | |
| 0.100" | 70.9 | 0.100" | 75.1 | |
| 0.200" | 147.6 | 0.200" | 150.9 | |
| 0.300" | 218.6 | 0.300" | 223.4 | |
| 0.400" | 265 | 0.400" | 271.0 | |
| 0.500" | 299 | 0.500" | 314.0 | |
| 0.600" | 297.8 | 0.600" | 324.7 | |
| 0.700" | 298.4 | 0.700" | 332.3 | |
| Stock Exhaust | M-6049-SD73P Exhaust | |||
| Lift | CFM | Lift | CFM | |
| 0.100" | 53.9 | 0.100" | 57.0 | |
| 0.200" | 104.6 | 0.200" | 107.0 | |
| 0.300" | 150.7 | 0.300" | 147.9 | |
| 0.400" | 178.3 | 0.400" | 183.1 | |
| 0.500" | 187.8 | 0.500" | 209.0 | |
| 0.600" | 192.8 | 0.600" | 216.0 | |
| 0.700" | 195.8 | 0.700" | 219.0 |
Part Type
Engine: Cylinder Heads
Warranty Availability
Package Dimensions
22.75" x 10.25" x 13"
Package Weight
40 lb(s)
UPC Code
756122019252
Country of Origin
Canada
