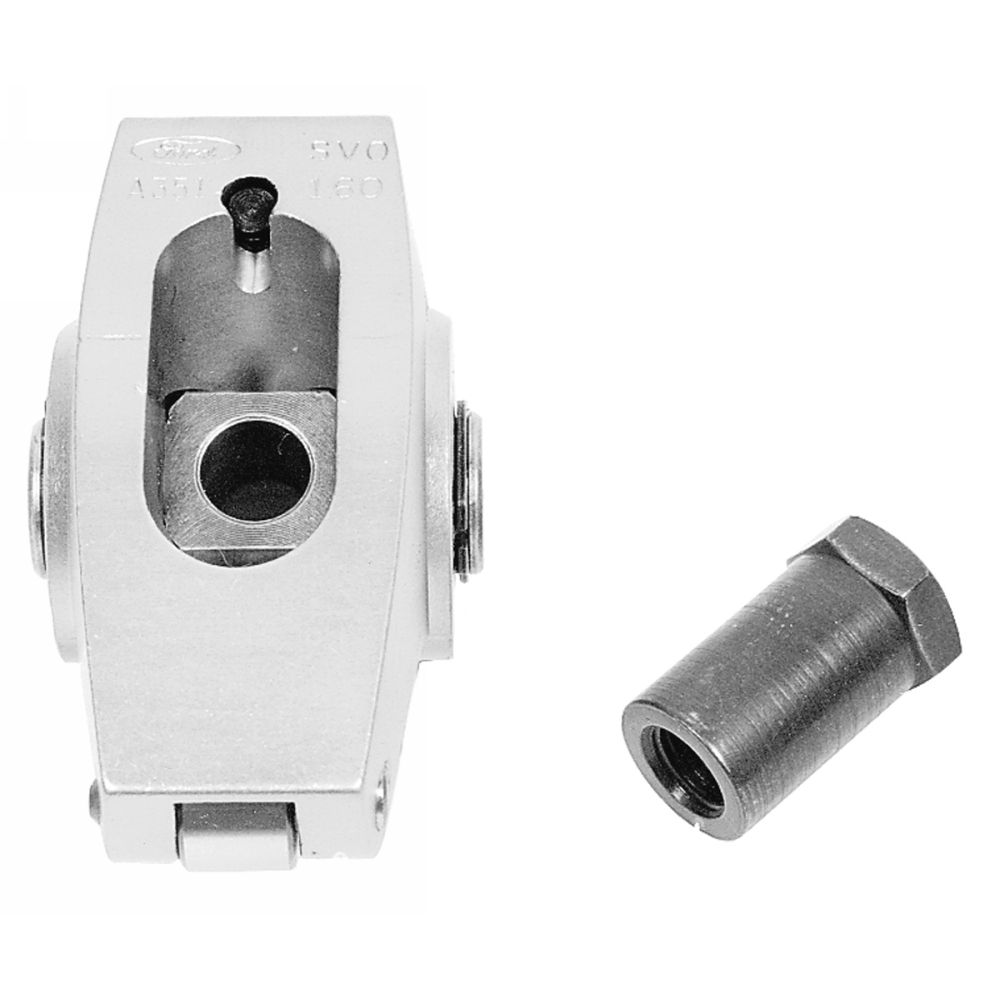

ROLLER ROCKER ARM

This part is no longer available.
ROLLER ROCKER ARM
M-6564-K351
Instruction Sheet
Available (PDF)
WARNING:
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S. and Canadian laws and regulations relating to motor vehicle emissions.
WARNING: Cancer http://www.p65warnings.ca.gov.
    PART NUMBER PACKAGE OF (16) APPLICATIONS DESCRIPTION NOTES
    RATIO MOUNTING VALVE TYPE
    M-6564-A351* 289/302/351W and Ford Performance aluminum cylinder heads M-6049-J302 1.60:1 Stud Inline Requires 3/8" stud, push rod guide plates & hardened push rods. Cast iron cylinder heads require pedestal machining.
    M-6564-D351* 1.70:1 Stud Inline
    M-6564-K351* 289/302/351 Ford Performance aluminum cylinder head
    M-6049-Z304     		1.60:1 Stud Inline Requires 7/16" stud, push rod guide plates & hardened push rods. Cast iron cylinder heads require pedestal machining.
    M-6564-B351*1 2 302/351W - 1978 and later with production heads. Cast iron and aluminum GT-40 heads 1.60:1 Bolt On Inline For stock production cast iron cylinder heads with hydraulic non-adjustable valve train. Does not require guide plates, hardened push rods or pedestal machining. Includes pedestal inserts & bolts.
    M-6564-A50*12 302/351W - 1978 and later with production heads. Cast iron and aluminum GT-40 heads 1.70:1 Bolt On Inline Same as "Cobra" 5.0L Mustang. These rocker arms have beefy trunnions for extra long life. Die cast aluminum construction.
    M-6564-F351* M-6049-N351/N352 "Sportsman" head. 1.65:1 Stud Inline 7/16" stud mount intake rocker with .150" offset pushrod cup (pkg. of 16).
    M-6564-C351* 351C/351M/400
    1973 and later
    429/460 production
    cylinder heads.     		1.73:1 Bolt On Canted For stock production canted valve cylinder heads with hydraulic non-adjustable valve train. Does not require guide plates, hardened push rods or pedestal machining. Includes pedestal inserts & bolts.
    M-6564-A460* 351C/351M/400
    302 BOSS/429/
    460,429 CJ/SCJ and Ford Performance
    high port aluminum cylinder heads.     		1.73:1 Stud Canted For canted valve cylinder heads. Requires 7/16" stud, push rod guide plates, hardened push rods. Some cast iron cylinder heads require pedestal machining.

    NOTES:

    1 The M-6564-B351 and -A50 bolt-on roller rocker arms will not clear the stamped rocker cover on standard 5.0L EFI engines. "Taller" valve covers, such as the production 5.0L EFI HO die-cast aluminum cover or Ford Performance chrome cover M-6582-D302, can be used if the baffle is modified in the RH cover. The M-6582-E302 polished aluminum valve cover will clear all rocker arms and stud girdles, but will not fit under the EFI manifold unless a 1" spacer M-9486-A53 is used between the upper and lower sections of the intake. M-6582-E302 will not fit 1994-95 Mustang or 1990-93 T-Bird.
    2 Rocker channels not included.
Part Type
Engine: Valves / Springs
Instruction Sheet
Warranty Availability
Not Available
Package Dimensions
7.75" x 3.5" x 9.75"
Package Weight
7.3 lb(s)
UPC Code
756122059203
Country of Origin
United States
